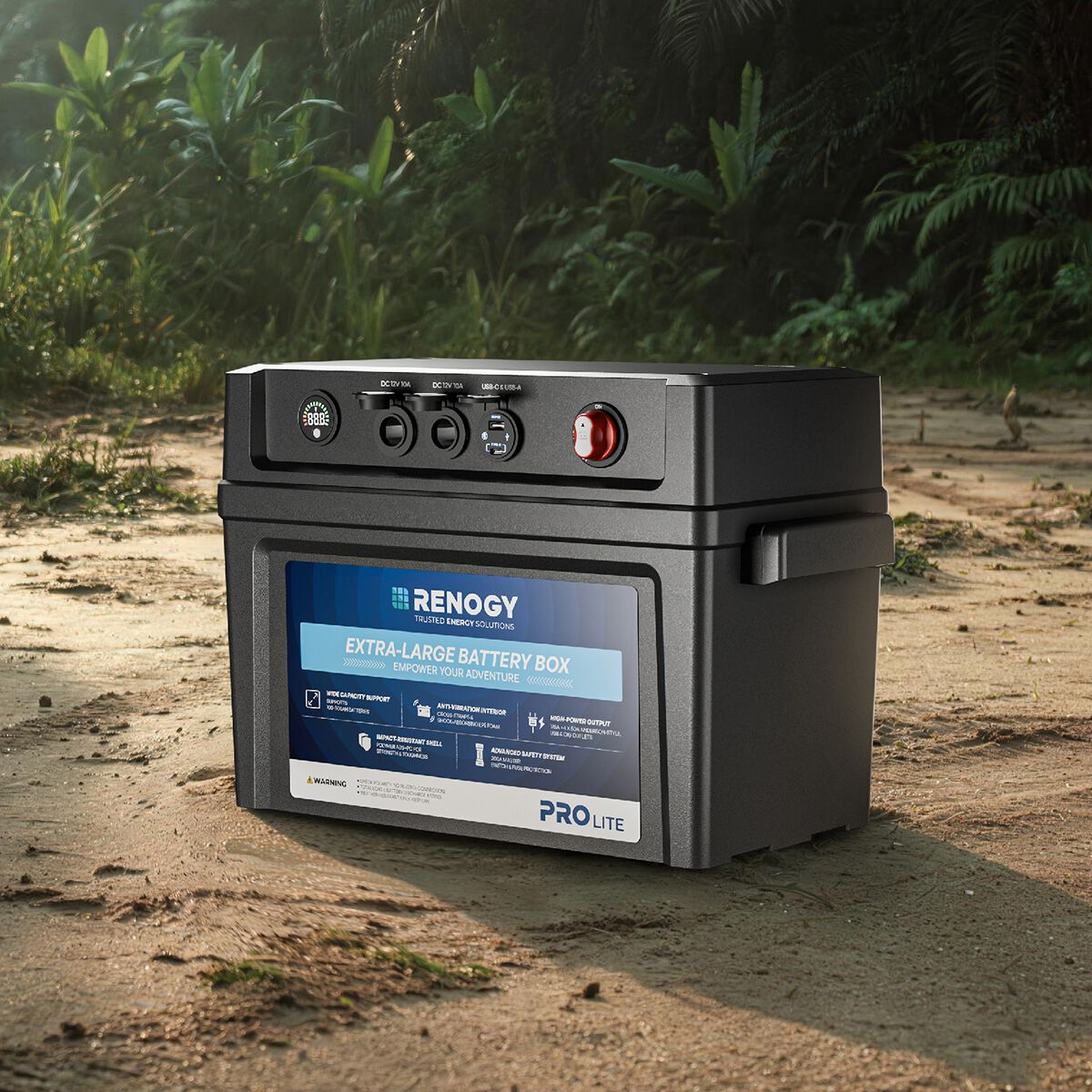

The Renogy XL Smart Battery Box is a protective housing engineered to fit 12V 100Ah batteries from major brands and the full Renogy battery lineup. Its spacious ABS+PC shell and integrated stabilisation system turn almost any deep cycle battery into a secure, high-output mobile power station, including Renogy's own compact 200Ah and 300Ah high capacity batteries.
Heavy-duty adjustable straps lock down batteries of varying sizes, while high-density compression foam absorbs the shocks of corrugations and rough tracks. Four 50A and one 175A Anderson-style connectors, protected by dust and splash caps, let a fridge, inverter and camp lights run simultaneously, backed by integrated fuses and a 200A master cut-off switch.
Built for overlanding, offshore trolling and demanding jobsites, the Renogy XL Smart Battery Box provides all-around protection and stable power delivery for 12V deep cycle batteries up to 300Ah.
Features
- Ideal for the Renogy 12.8V 300Ah PROLite lithium deep cycle battery, also fits the 100Ah PROLite
- XL size fits most 12V deep cycle batteries, engineered for entire Renogy series excluding slimline models
- Heavy-duty adjustable straps and compression foam padding minimise vibration for a universal fit
- ABS+PC polymer shell delivers impact resistance and durability in harsh Australian conditions

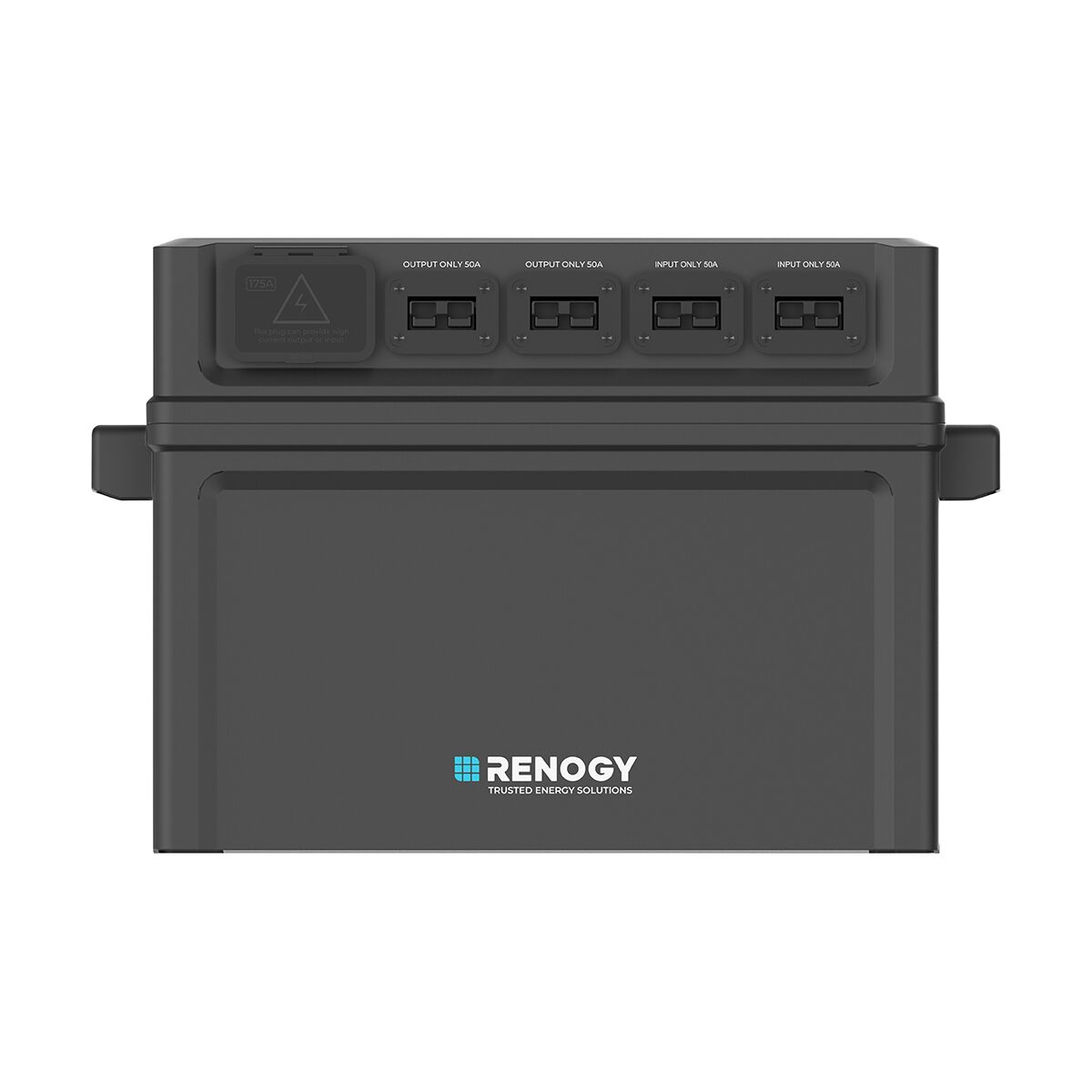

- Onboard 4 x 50A and 1 x 175A Anderson-style connectors run a fridge, inverter and camp lights together
- Protective caps on connectors guard against dust, rain and water splashes
- Integrated fuses, a 200A master cut-off switch and 150A-rated copper wiring provide safety protection
Tech Spec
| External Dimensions (L x W x H) | 500 x 250 x 330mm |
|---|---|
| Maximum Battery Size Accommodated | 339 x 185 x 248mm |
| Material / Construction | PC + ABS |
| Weight | 4.1kg |
| Mounting / Tie-Down Method | Heavy-duty adjustable straps with custom compression foam padding |
| Included Outlets (Anderson / USB / Cig Socket) | 4 x 50A Anderson-style ports, 1 x SB175A type Anderson connector, dual USB and CIG sockets |
| Battery Type Suitability (AGM / Lithium / Deep Cycle) | Deep Cycle Batteries (Lithium, AGM, Calcium, Wet, Gel) |
| Compatible System Voltage | 12V DC |
| Continuous Current Rating | Total 135A |
| Master Switch / Fuse Ratings | 200A master switch, 2 x 50A auto-reset breakers (Anderson-style plugs), 1 x 30A blade fuse (USB and CIG ports) |
| Display | Voltage display screen |
| Operating Temperature | -20°C to 65°C |
