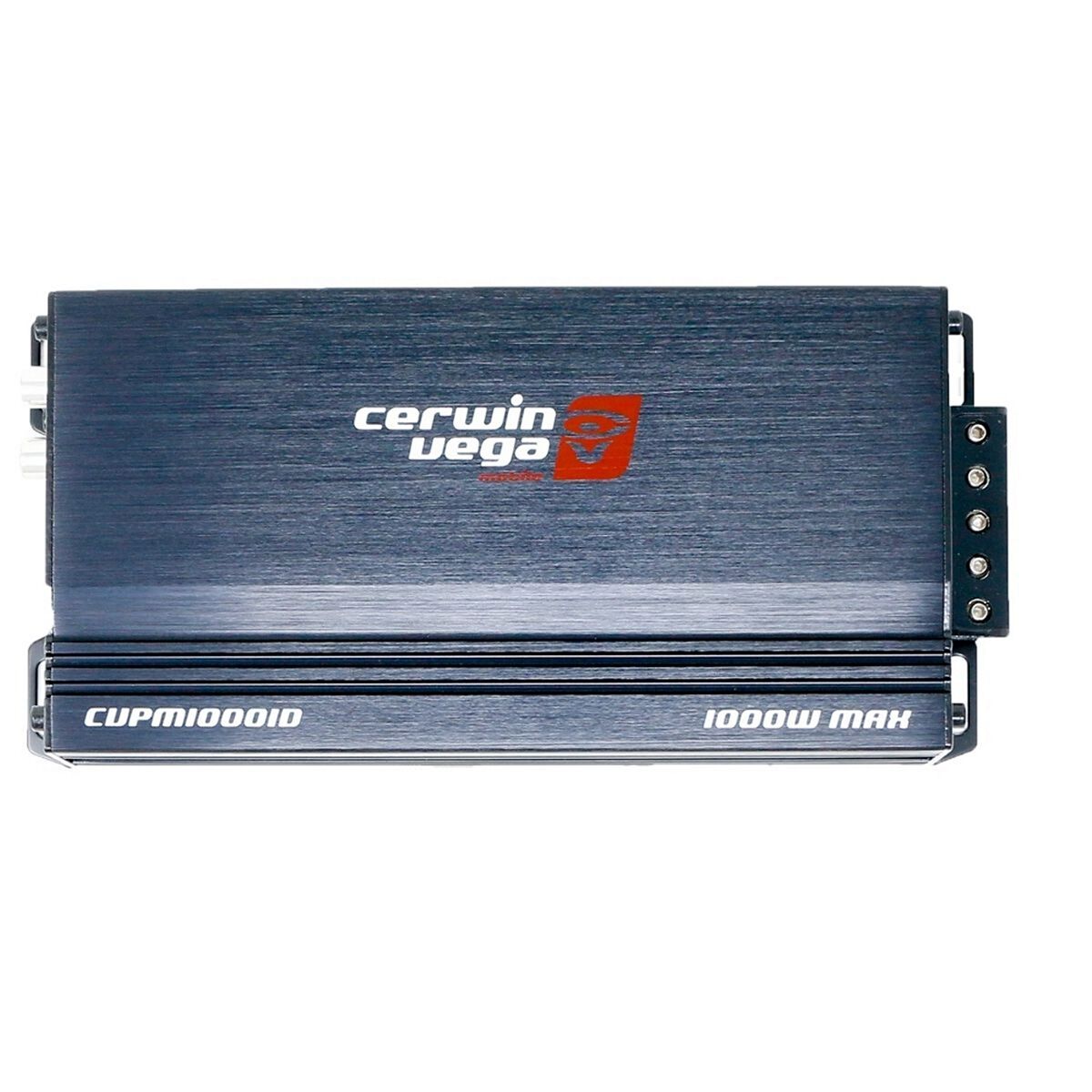

Cerwin Vega Amplifier CVP Series Mono 350W Rms @ 4Ohm/500W Rms @ 2Ohm - CVPM1000.1D
Details
https://www.supercheapauto.co.nz/p/cerwin-vega-cerwin-vega-amplifier-cvp-series-mono-350w-rms-4ohm-500w-rms-2ohm/SPO10600148.html
$369.00
$0.00
Promotions
Special Offer
Only select SCA stores can do fitments, please enter your location to see the closest.
Item No. SPO10600148
Additional Information
Product Info
Product Info
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 310W X 1
RMS POWER PER CHANNEL 2Ω 500W X 1
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 35HZ-500HZ
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.01%
- S/N RATIO (A WEIGHTED @1W): -85dBA
- S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
- Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
- Low Level Input: 20KΩ
Output Stage
- Output Impedance: 0.0297Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3db): 10Hz-45KHz
Crossover (1-12dB/Oct)
- Variable High-Pass:
- Variable low-Pass: 35Hz-500Hz
Fuse Rating
- 2x30A
Dimensions
- Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
Features
- Variable low-Pass: 35Hz-500Hz
- Power Supply: Full WPM
