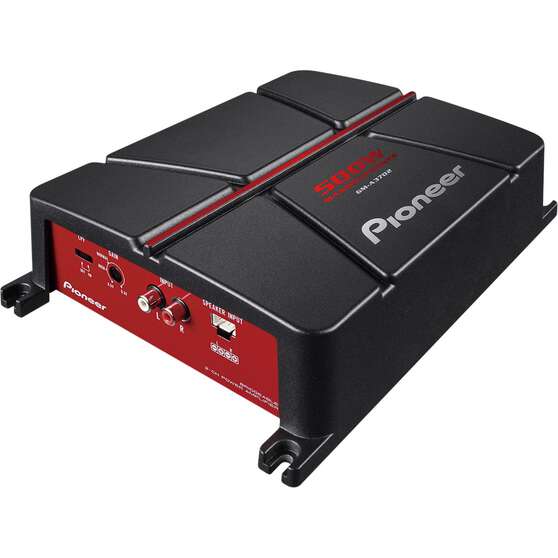

The Pioneer GMA3702 2-Channel Amplifier is a versatile bridgeable monoblock amp delivering up to 500 watts of maximum output power. It provides 170W x 2 at 4 Ohms and 250W x 2 at 2 Ohms, with RMS power of 60W x 2 at 4 Ohms and 95W x 2 at 2 Ohms. Bridged at 4 Ohms, it produces 190W x 1 for high-powered applications.
Featuring both hi and low (RCA) level inputs, the amplifier includes a Low Pass Filter (LPF) for driving subwoofers efficiently. Its wide frequency response range from 10 Hz to 70,000 Hz ensures vibrant highs, detailed mids, and robust lows for a full, dynamic audio experience.
Compact and reliable, the GMA3702 is ideal for enhancing your vehicle’s sound system, offering flexible installation and superior sound performance across all music genres.
Features
- Bridgeable Monoblock amp with 500 watts of maximum output power
- Maximum Power Output at 4 Ohms 170W x 2, at 2 Ohms 250W x 2
- Nominal Power (RMS) Output at 4 Ohms 60W x 2, at 2 Ohms 95W x 2
- Nominal Power (RMS) Output - Bridged at 4 Ohms 190W x 1
- Hi and Low (RCA) level inputs with Low Pass Filter (LPF) for powering subwoofers
- Frequency response range of 10 - 70000 Hz provides vibrant highs and robust lows
- 1 Year Warranty
Tech Spec
| RCA Inputs | 2-CH |
|---|---|
| Amplifier Class | Class AB |
| Hi-Res Certified | No |
| Bridgeable | Yes |
| Warranty | 1 Year |
| Speaker Level Input | Yes |
| Fuse Rating | 25A x 1 |
| Bass Boost Remote | No |
| Automatic Signal Sensing and Turn-On | Yes |
| Hi-Volt Input Level Control | 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in) |
| Terminal Type | Screw |
| Load Impedance Allowance (Ohms) | 2 to 4 |
| Protection Control System | Yes |
| Dimensions (W x H x D) | 246 x 60 x 180 mm |
| Continuous Power (RMS) Output @ 1Ω | N/A |
| Continuous Power (RMS) Output @ 2Ω | 95W x 2 |
| Continuous Power (RMS) Output @ 4Ω | 60W x 2 |
| Continuous Power (RMS) Output - Bridged @ 4Ω | 190W x 1 |
| Low-Pass Crossover Frequency | 80 Hz |
| Low-Pass Slope (dB/octave) | -12 dB/oct (A/B CH) |
| High-Pass Crossover Frequency | N/A |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Level | 0 / 6 / 12 dB |
| Frequency Response | 10 Hz ~ 70 kHz |
| Total Harmonic Distortion (THD) | <0.05 % |
| Signal-to-Noise (SN) Ratio | >95 dB |
