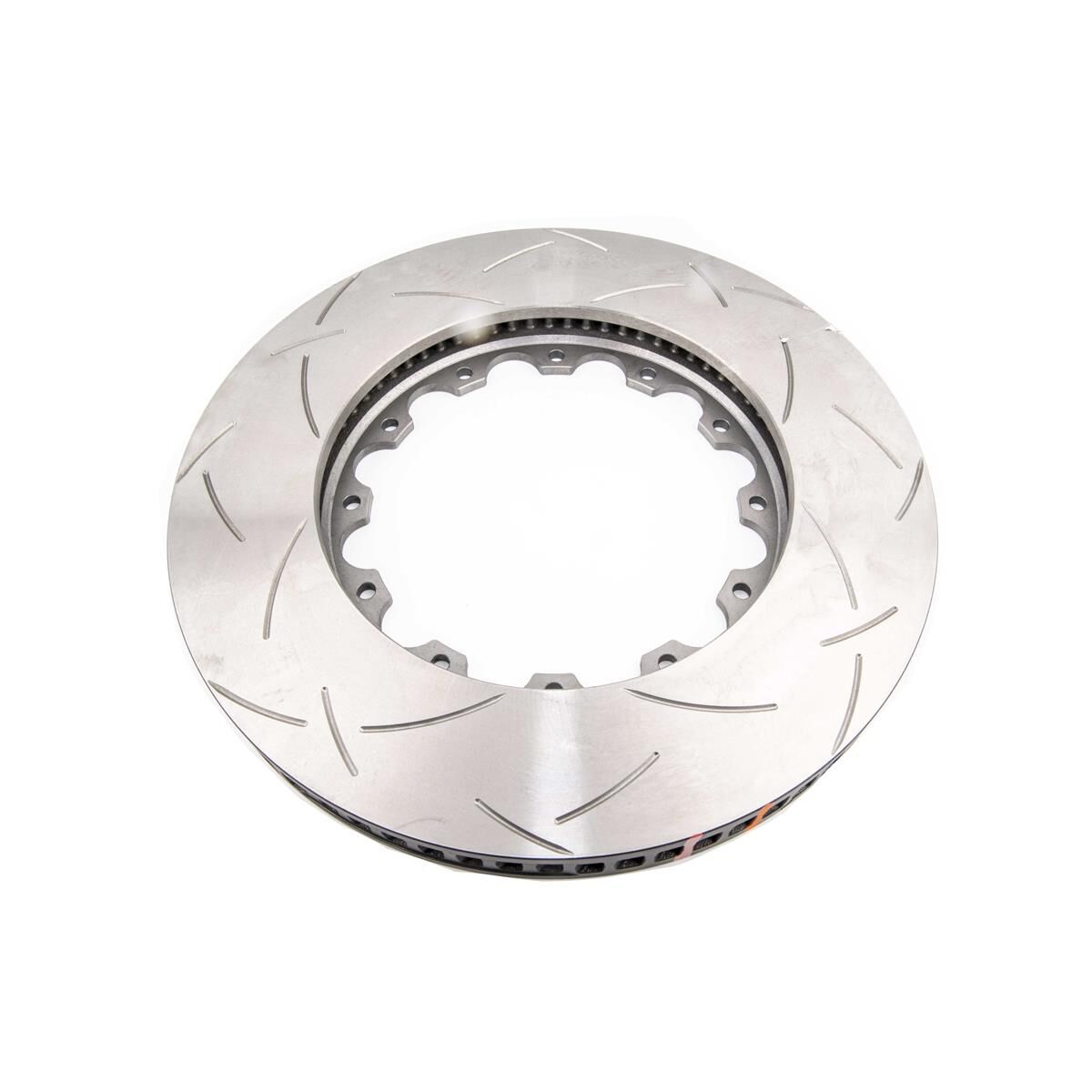

The DBA 5000 T3 Brake Rotor Replacement Ring Single Right DBA52972.1RS is a direct replacement flat disc ring. It suits DBA's composite two-piece 5000 Series brake rotor, letting owners reuse their existing aluminium hat rather than replace the complete assembly; it is supplied as the 380mm x 36mm right hand ring only, with no mounting nuts included, and cross references to AP Racing CP7177-128/129 applications.
Machined from DBA's high carbon alloyed iron formulation, the ring carries DBA's patented T3 bi-directional slot design, a tri-symmetrical CNC machined slot pattern built on DBA's earlier T2 slot that increases the number of exit points for brake pad friction dust and gases. This design is intended to deliver a quieter, more consistent and more responsive pedal feel compared with a plain rotor surface, and DBA recommends the T3 slot for high performance street, track day, club racing, rally and show vehicle applications.
Features
- Single replacement ring only, not a complete rotor assembly, no mounting nuts supplied
- 380mm diameter x 36mm thick right hand ring, cross references to AP Racing CP7177-128/129
- T3 bi-directional tri-symmetrical slot design gives a quieter, more responsive pedal feel
- High carbon alloyed iron with DBA's thermal stability profiling delivers sustained heat resistance
- CBN machine turned finish minimises disc thickness variation, reducing pad knock and premature wear
- Kangaroo Paw vane design improves heat dissipation by up to 20%, extending brake life
- Recommended for high performance street vehicles, track day, club racing, rally and show use
- Heat treatment cycles realign the iron's microstructure for increased stability and durability
- Compatible with existing DBA 5000 Series hats, letting you reuse your current hat with this replacement ring
-
Unique Kangaroo Paw vane design enhances heat dissipation by up to 20%, improving braking performance and extending the life of your brakes *
*Some variants may not contain all features
Tech Spec
| Position | Right |
|---|---|
| Diameter (mm) | 380mm |
| Thickness (mm) | 36mm |
| Slot/Drill Pattern | T3 bi-directional tri-symmetrical slot |
| Series | 5000 Series |
| Material | High Carbon Alloyed Iron |
| Kit Contents | Single ring, no mounting nuts supplied |
| Cross Reference | AP Racing CP7177-128/129 |
