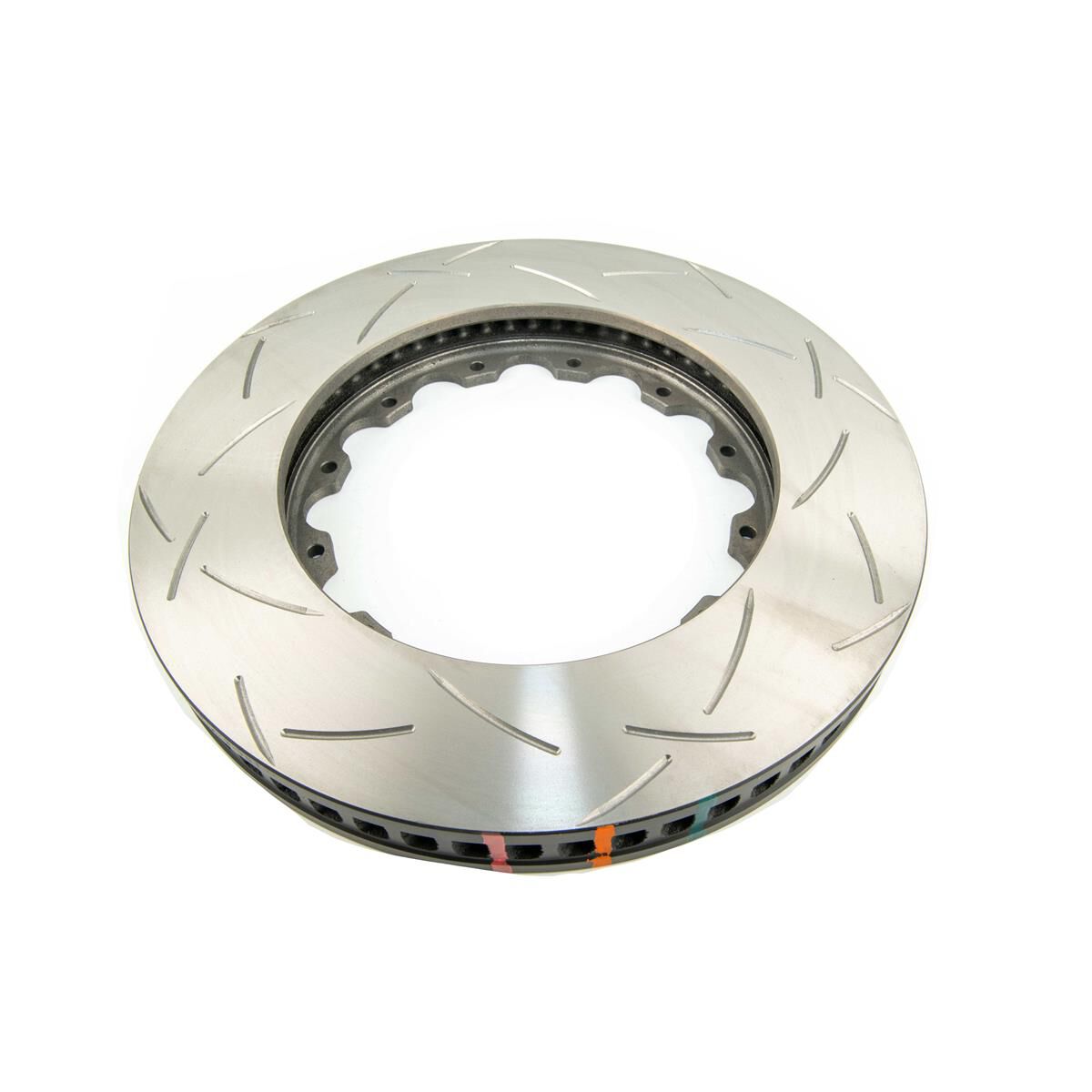

The DBA 5000 Series T3 brake rotor replacement ring front right to suit Ford Mustang DBA52973.1RS is a 304mm by 34mm friction ring designed to rebuild DBA 5000 Series two-piece rotor assemblies.
DBA 5000 Series T3 rotors feature a patented bi-directional slot design that increases the exit points for brake pad friction dust and gases, improving pedal feel and braking consistency on high-performance street and track applications. The ring is constructed from a high carbon alloyed iron formulation designed to interact with DBA's thermal stability profiling, helping the rotor withstand continuous, intense heat. Its 12-hole, 6.4mm mounting pattern cross-references to AP Racing CP3870-2078G rotors.
Supplied as the friction ring only, this replacement part allows owners to reuse their existing DBA 5000 Series aluminium hats rather than replacing the complete two-piece assembly, and is sold without mounting nuts.
Features
- Replacement friction ring only, not a complete rotor assembly, to suit Ford Mustang
- 304mm diameter, 34mm thick ring suits DBA 5000 Series T3 two-piece aluminium hats
- Patented T3 bi-directional slot design increases friction dust and gas exit points
- High carbon alloyed iron formulation withstands continuous, intense braking heat
- 12-hole, 6.4mm mounting pattern cross-references to AP Racing CP3870-2078G rotors
- Supplied without mounting nuts, compatible with existing DBA 5000 Series hats
- CNC machined tri-symmetrical slots give a quieter, more responsive pedal feel
- CBN machined finish minimises disc thickness variation, reducing pad knock and wear
- Heat treatment cycles realign the iron's microstructure for greater stability and heat transfer
- 60-vane Kangaroo Paw ventilation design for greater heat dissipation
Tech Spec
| Vehicle Fitment | Ford Mustang |
|---|---|
| Position | Front Right |
| Diameter (mm) | 304mm |
| Thickness (mm) | 34mm |
| Slot/Drill Pattern | T3 bi-directional slot design |
| Series | 5000 Series T3 |
| Material | High Carbon Alloyed Iron |
| Kit Contents | Replacement friction ring only, supplied without mounting nuts |
| Cross Reference | AP Racing CP3870-2078G |
| Mounting Hole Pattern | 12 x 6.4mm |
