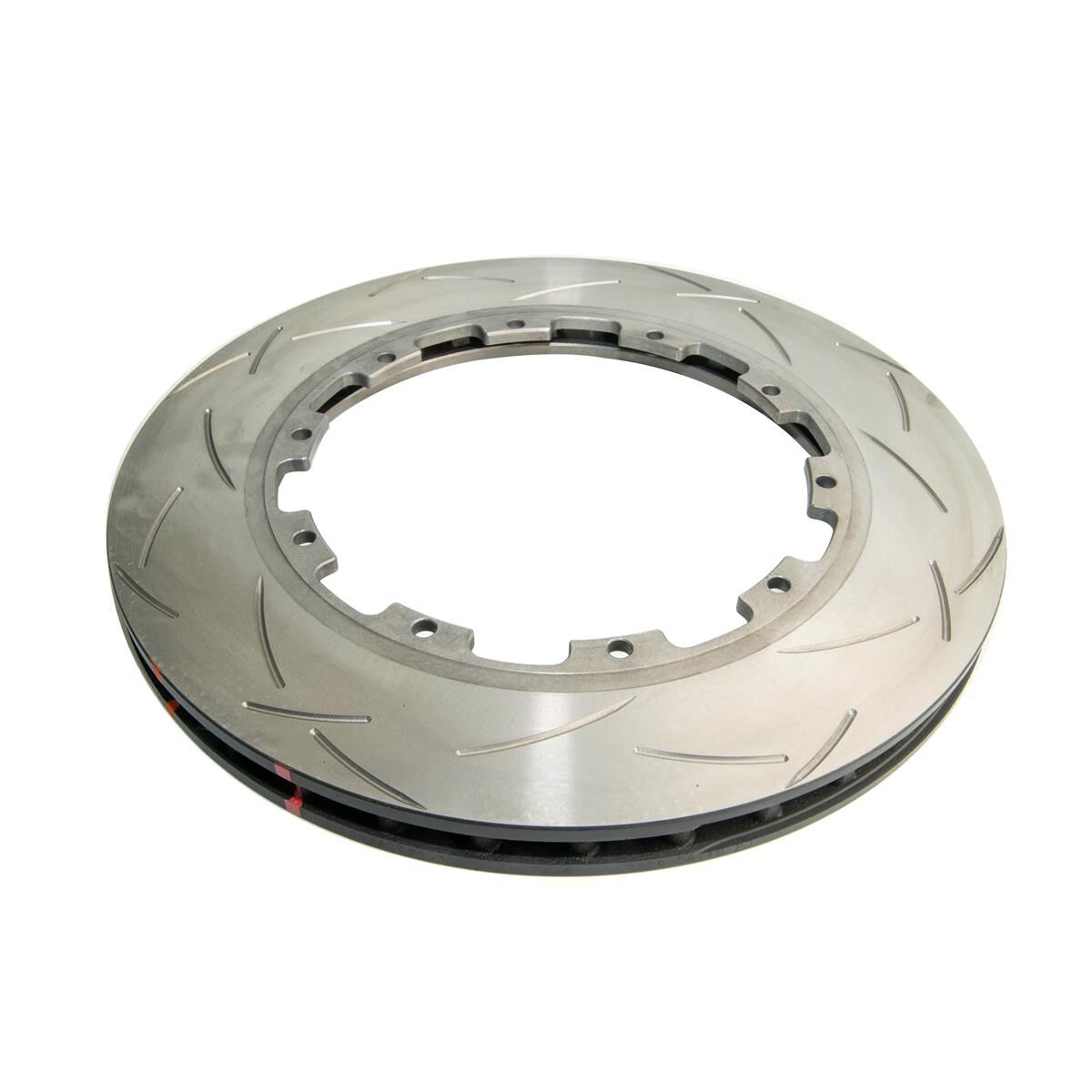

The DBA 5000 Series T3 Brake Rotor Replacement Ring Rear DBA52909.1S is a single replacement ring for DBA's 5000 Series two-piece rotor, suiting Ford and Holden rear applications. It is a high carbon alloyed iron ring featuring DBA's patented tri-symmetrical T3 bi-directional slot design, which increases the exit points for brake pad friction dust and gases and delivers a quieter, more responsive pedal feel. At 355mm outer diameter and 26mm thick, the ring is supplied without NAS nuts, letting drivers reuse their existing DBA 5000 Series aluminium hat.
DBA recommends the T3 slot for high performance street driving, track days, club racing and rally applications. The ring carries DBA's KP (Kangaroo Paw) vane design for improved heat dissipation, a CBN machine-turned finish that minimises disc thickness variation, and a high carbon alloyed iron formulation engineered to withstand continuous, intense braking heat. The ring is backed by a 12 months/20,000km/12,000 miles warranty.
Features
- Single replacement ring only, rebuilds the DBA 52909 2-piece rotor assembly to suit Ford & Holden rear
- Tri-symmetrical T3 bi-directional slot design delivers a quieter, more responsive pedal feel
- Slots increase friction dust and gas exit points for consistent, effective braking
- Bi-directional symmetrical slotting allows universal left or right fitment
- KP (Kangaroo Paw) vane design increases heat dissipation for improved braking performance
- High Carbon Alloyed Iron formulation withstands continuous, intense braking heat
- CBN machine-turned finish minimises disc thickness variation and pad knock
- 355mm outer diameter, 26mm thick ring supplied without NAS nuts
- Thermal efficiency centre-split core casting improves heat transfer
- 12 months/20,000km/12,000 miles warranty
Tech Spec
| Vehicle Fitment | Ford & Holden (Rear) |
|---|---|
| Position | Rear |
| Diameter (mm) | 355mm |
| Thickness (mm) | 26mm |
| Slot/Drill Pattern | T3 tri-symmetrical bi-directional slot, Slotted surface design |
| Vent Type | KP Vents (Kangaroo Paw) |
| Series | 5000 Series |
| Material | High Carbon Alloyed Iron |
| Weight (kg) | 9.19kg (packaged) |
| Kit Contents | Single replacement ring only, no nuts supplied |
| Warranty | 12 months / 20,000km / 12,000 miles |
| Cross Reference | PBR M-Series OE # 510216F-0711 |
