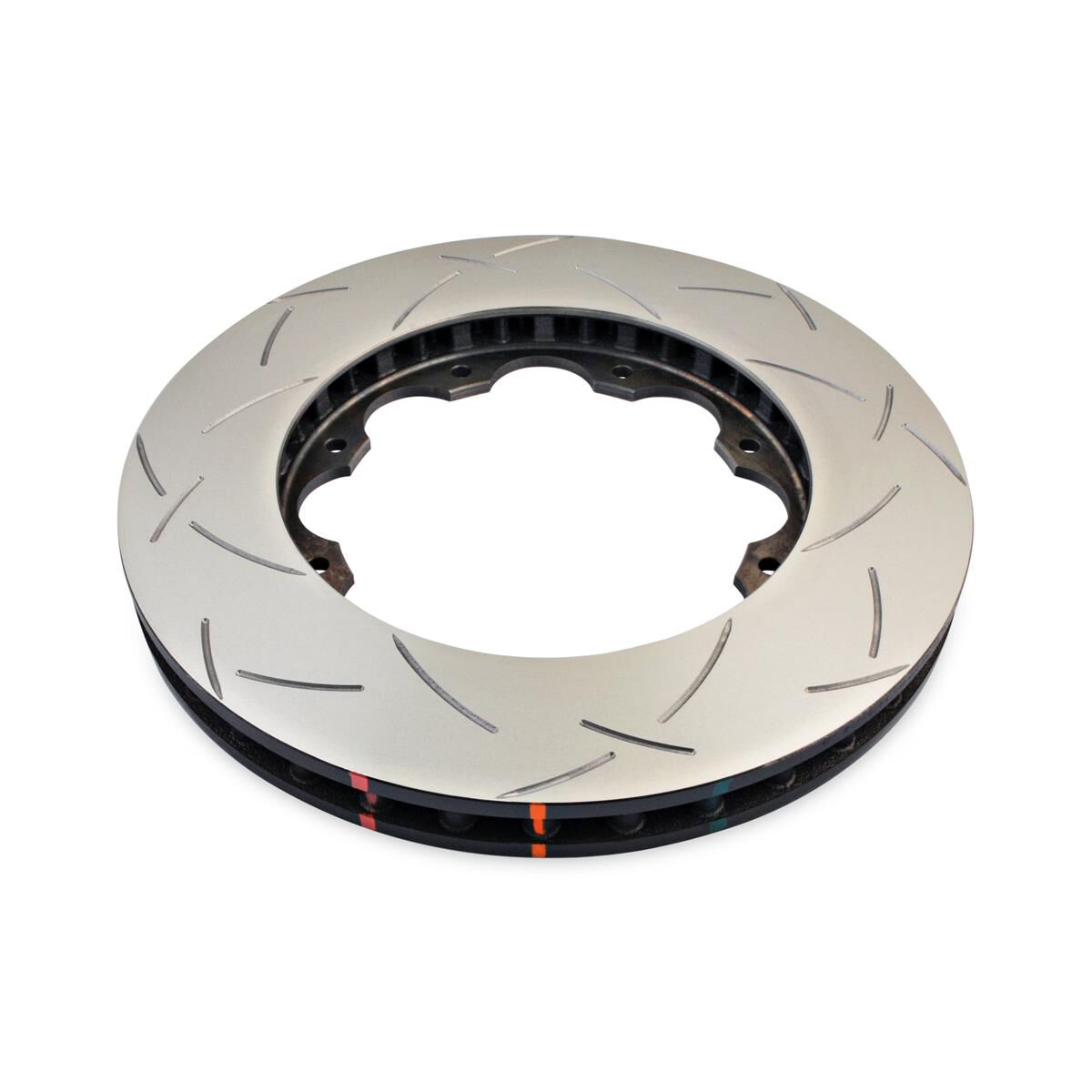

The DBA 5000 Series T3 Brake Rotor Replacement Ring DBA52223.1S rebuilds front rotor assemblies. This high-carbon cast iron friction ring suits the Mitsubishi Lancer Evolution X (CJ) Brembo OE braking package, 2007 to 2015, and replaces the friction ring in the DBA52223 two-piece rotor. Supplied with M6 lock nut only; does not include aluminium hat or complete rotor assembly.
Built on DBA's 5000 Series foundations, the T3 slot design uses precise CNC machined tri-symmetrical slots for a quieter, more responsive brake pedal feel. The slots increase the number of exit points for brake pad friction dust and gases, improving the consistency of every stop. The high-carbon cast iron formulation is designed to withstand sustained high braking temperatures, and DBA recommends the T3 slot pattern for high performance applications such as track day and club racing use.
The ring measures 350mm in diameter and 32mm thick, with Kangaroo Paw (KP) internal venting and an 8-hole, 201mm PCD mounting pattern, and is backed by a 12 month/20,000km/12,000 mile warranty.
Features
- Rebuilds the DBA52223 two-piece assembly to suit Mitsubishi Lancer Evolution X (CJ) 2007–2015
- Single friction ring only, supplied with M6 lock nut; hat sold separately
- Premium high-carbon cast iron formulation improves temperature management
- T3 bi-directional slotting pattern allows non-directional left or right fitment
- TGHP paint stripes let you monitor operating temperature conditions
- KP (Kangaroo Paw) vane design improves heat dissipation within the ring
- 350mm diameter, 32mm thick cast iron brake ring suits front axle fitment
- Direct equivalent to Brembo rotor part XA2.91.32/33
- 8 hole, 201mm PCD mounting pattern for direct bolt up fitment
- 12 month/20,000km/12,000 mile warranty
Tech Spec
| Vehicle Fitment | Mitsubishi Lancer CJ (Evolution X MR, Brembo OE), Front, 2007–2015 |
|---|---|
| Position | Front |
| Diameter (mm) | 350 |
| Thickness (mm) | 32 |
| Slot/Drill Pattern | T3 bi-directional slotted |
| Vent Type | KP Vents (Kangaroo Paw) |
| Series | 5000 Series |
| Material | High-Carbon Cast Iron |
| Kit Contents | Supplied with M6 lock nut |
| Warranty | 12 months / 20,000km / 12,000 miles |
| Cross Reference | Brembo XA2.91.32/33 |
