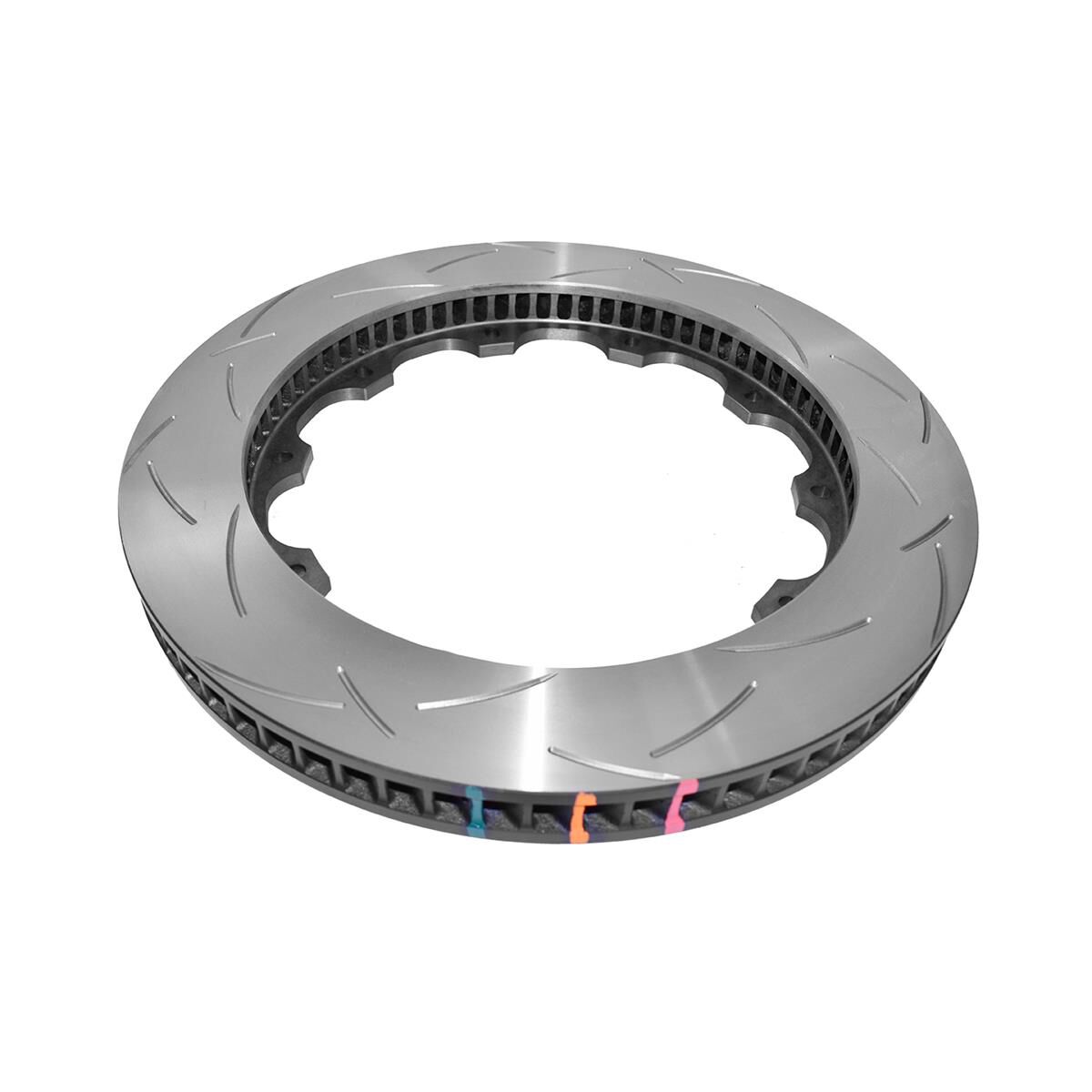

The DBA 5000 Series T3 Brake Rotor Replacement Ring Left DBA52933.1LS is a single-piece friction ring that rebuilds DBA 5000 Series two-piece rotor assemblies. It directly replaces Brembo-fitted rotors carrying part numbers 09.5759.74/84, 09.5759.98/99 and 09.8528.74/84, a configuration used on high performance vehicles such as the EVO 10, Nissan GTR, BMW M, Mercedes AMG, HSV and FPV. The ring measures 380mm in diameter and 32mm thick, cast from DBA's high carbon alloyed iron formulation with a 72 vane Kangaroo Paw design for heat dissipation.
This T3 variant features DBA's patented bi-directional tri-symmetrical slot design, which increases the number of exit points for brake pad friction dust and gases compared with the earlier T2 slot, giving a quieter and more responsive pedal feel. Thermal Stability Profiling heat treatment realigns the iron's microstructure for increased rotor stability, while the CBN machine-turned finish minimises disc thickness variation and the risk of pad knock. As a ring only, this part reuses the existing DBA 5000 Series aluminium hat and NAS bolts, offering a way to renew the friction surface without replacing the complete assembly.
Features
- Suits Brembo-equipped two-piece rotor assemblies 09.5759.74/84, 09.5759.98/99 and 09.8528.74/84
- Single replacement friction ring only, hat and bolts not included
- 380mm diameter, 32mm thick ring with 72 vane Kangaroo Paw design
- T3 bi-directional tri-symmetrical slots increase dust and gas exit points for a quieter pedal feel
- High Carbon Alloyed Iron formulation interacts with DBA's Thermal Stability Profiling for heat resistance
- CBN machine-turned finish minimises disc thickness variation and pad knock
- Heat treatment realigns iron microstructure for increased rotor stability and durability
- Reusable with existing DBA 5000 Series aluminium hats and NAS bolts for cost-effective renewal
- Anti-rust painted non-friction areas protect appearance; Thermographic Heat Paint markings track temperature
- Kangaroo Paw vane design improves heat dissipation by up to 20%
Tech Spec
| Vehicle Fitment | EVO 10, Nissan GTR, BMW M, Mercedes AMG, HSV and FPV (vehicles fitted with Brembo two-piece rotor assemblies 09.5759.74/84, 09.5759.98/99, 09.8528.74/84) |
|---|---|
| Position | Left |
| Diameter (mm) | 380mm |
| Thickness (mm) | 32mm |
| Slot/Drill Pattern | T3 trisymmetrical bi-directional slot |
| Vent Type | Kangaroo Paw, 72 vane |
| Series | 5000 Series |
| Material | High Carbon Alloyed Iron (XG150) |
| Kit Contents | Single replacement friction ring only, excludes hat, bolts and nuts |
| Warranty | 12 months / 20,000km / 12,000 miles |
| Cross Reference | Brembo 09.5759.74/84, 09.5759.98/99, 09.8528.74/84 |
