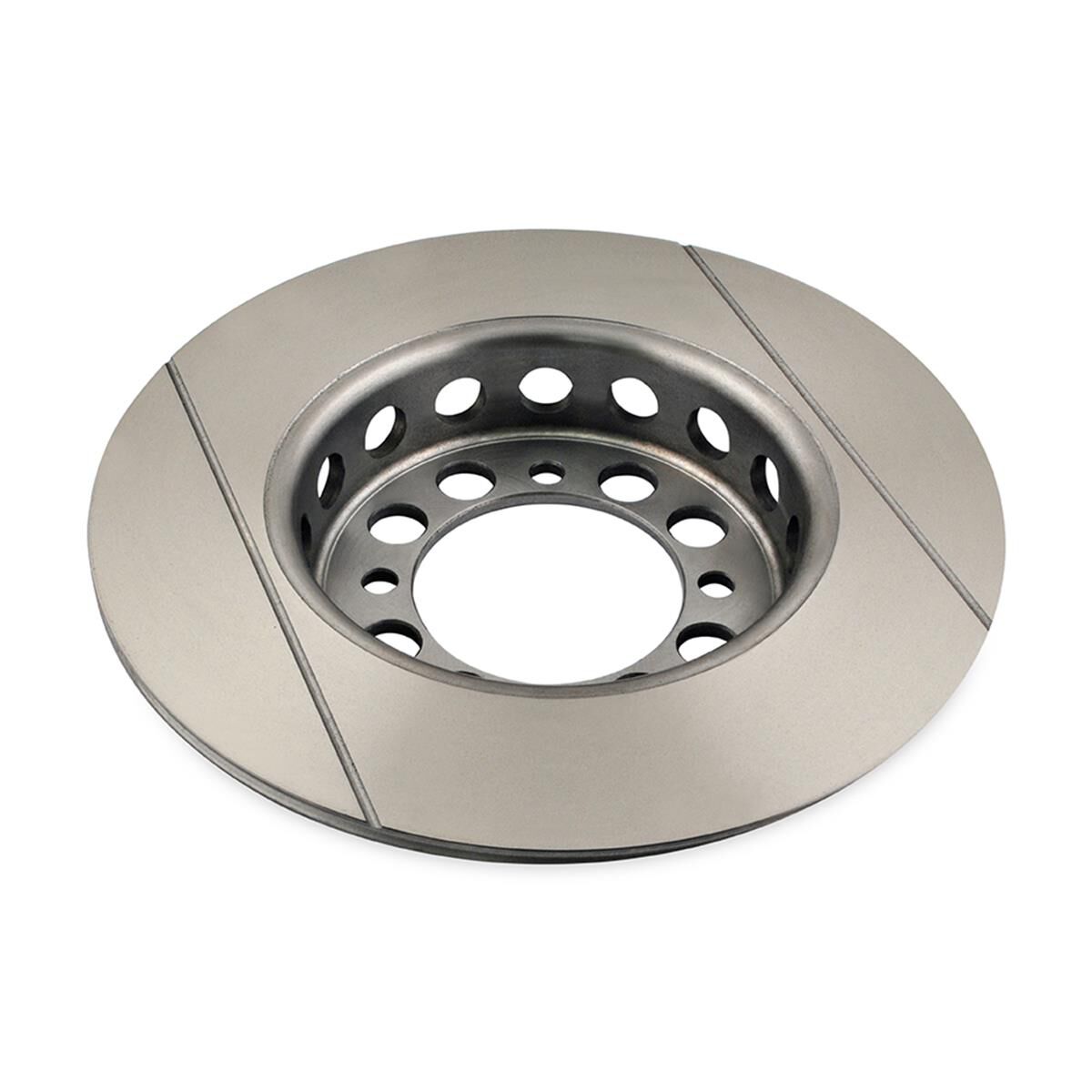

The DBA 4000 Series HD Rear Brake Rotor to suit Formula Ford DBA4994 is a direct replacement single-piece rotor built for Formula Ford hat-type rear brake applications. This listing covers one single rotor only, sold individually rather than as a pair. Cast from high carbon alloyed iron and subjected to DBA's Thermal Stability Profiling, the rotor is engineered to withstand the stress and heat generated under repeated, demanding braking.
DBA's Kangaroo Paw ventilation design, featuring a pattern of 144 diamond and teardrop-shaped pillars, increases surface area by up to 30% and improves cooling efficiency by up to 20% over a traditional straight vane design. Slots and chamfered drill holes clear friction dust and gases for a smoother pedal feel, while anti-rust painted non-friction areas protect appearance over time. A CBN machine turned finish minimises disc thickness variation to reduce the risk of pad knock, and thermographic heat paint markings change colour at set temperatures to indicate braking heat and rotor fatigue. The rotor is backed by a 12 month/20,000km warranty.
Features
- SINGLE ROTOR ONLY
- Suits Formula Ford hat-type rear disc brake applications
- Quieter and more responsive pedal feel from slots and chamfered drill holes that vent dust and gases
- Anti-rust painted non-friction surfaces prevent corrosion and enhance appearance
- Bi-directional symmetrical slotting and drilling allow universal left and right fitment
- Heat treatment cycles realign the iron's microstructure for increased rotor stability and durability
- Thermographic paint markings change colour at precise temperatures to indicate braking heat and rotor fatigue
- CBN machine turned finish minimises disc thickness variation, reducing pad knock and premature wear risk
- Kangaroo Paw vane design increases surface area by up to 30% and cooling efficiency by up to 20%
- 12 month/20,000km warranty
Tech Spec
| Diameter (mm) | 248 |
|---|---|
| Height (mm) | 41 |
| Thickness (mm) | 7 |
| Centre Hole (mm) | 76 |
| Stud Holes | 8 Holes, 95mm PCD |
| Weight (kg) | 1.45 |
| Vehicle Fitment | Formula Ford, hat-type rear disc applications |
| Warranty | 12 months / 20,000km / 12,000 miles |
