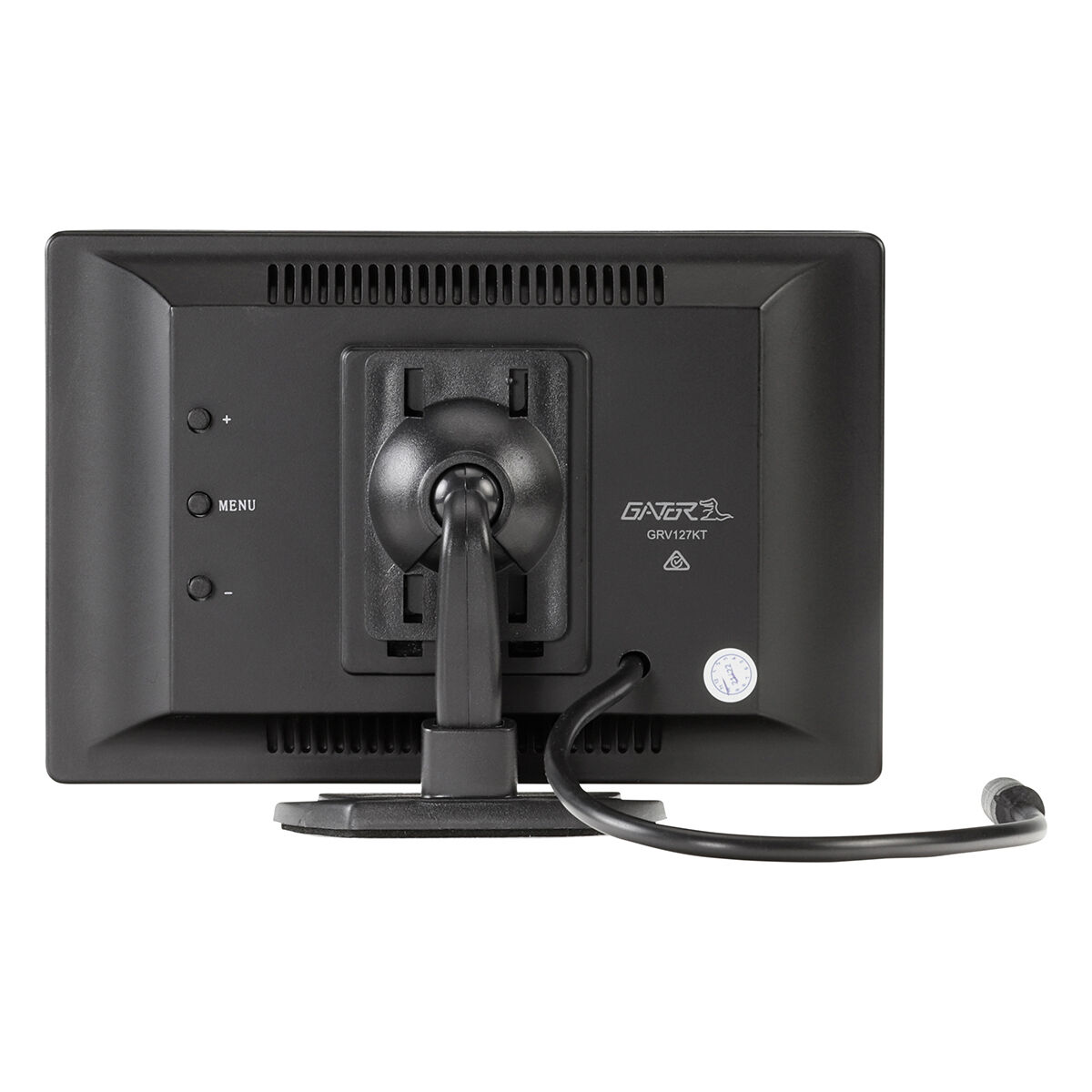

Reversing couldn’t be easier with a Gator GRV127KT Reverse Camera Kit on-board. Featuring a 5” colour monitor, you can maintain visibility of obstacles and hazards that might otherwise be obscured by blind spots and poor visibility. The display is large enough to provide maximum visibility, yet small enough to not obscure your view of the road ahead. It features easy to use picture adjustment buttons conveniently situated on the rear-most part of the monitor, giving it a clean, compact look.

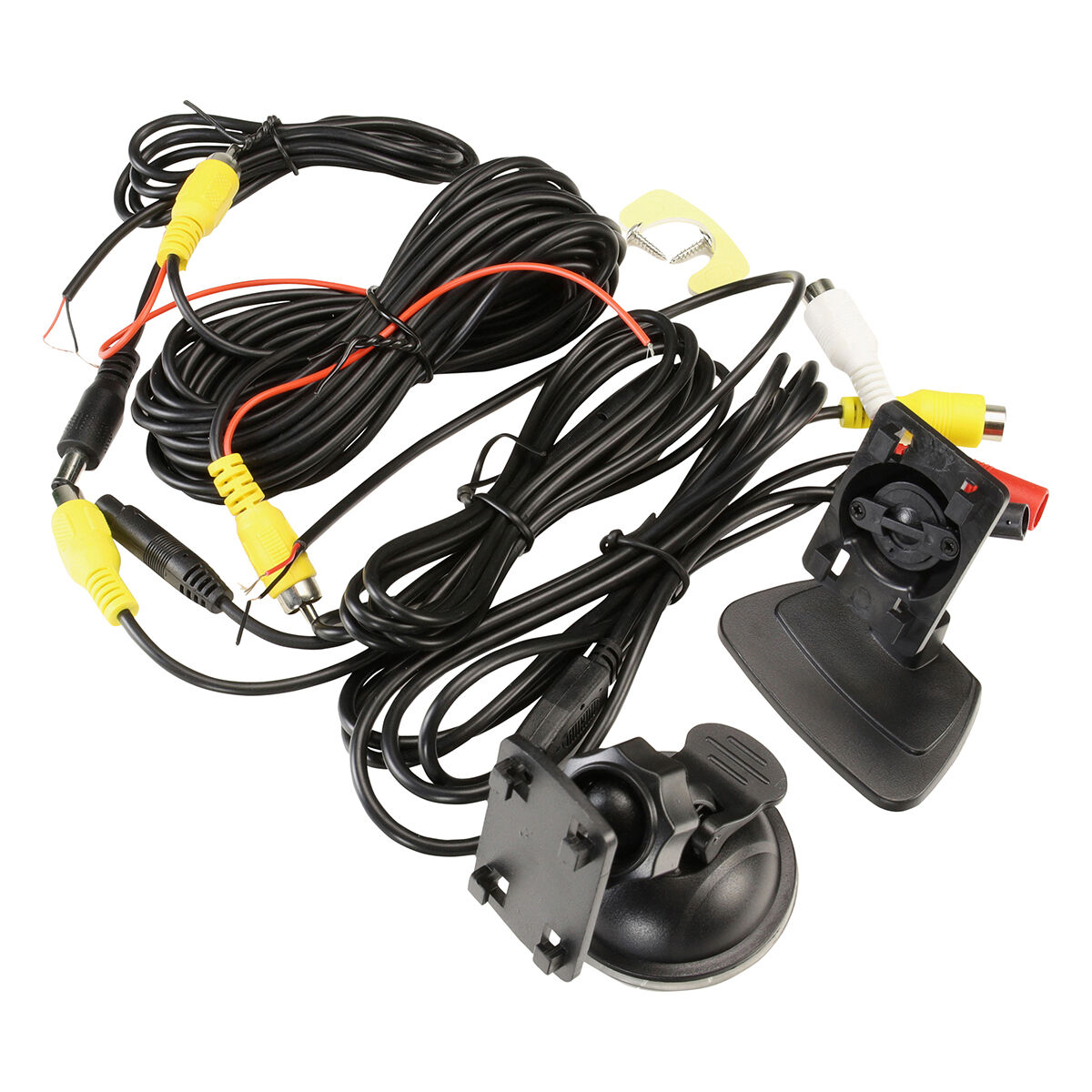

The kit includes an adhesive mount for secure attachment to your dashboard and a suction mount if you would prefer to attach it to the windscreen. It also includes a compact butterfly mount camera with built-in gridlines to assist with reverse parking. As soon as reverse gear is engaged in the vehicle, the monitor will automatically turn on and display the reverse camera.
The kit comes supplied with a 5.5M video cable and is 12V compatible, making it suitable for installation in virtually any vehicle. For full coverage around the vehicle, the monitor also has a second AV input, allowing a second camera to be added to the system.
Features

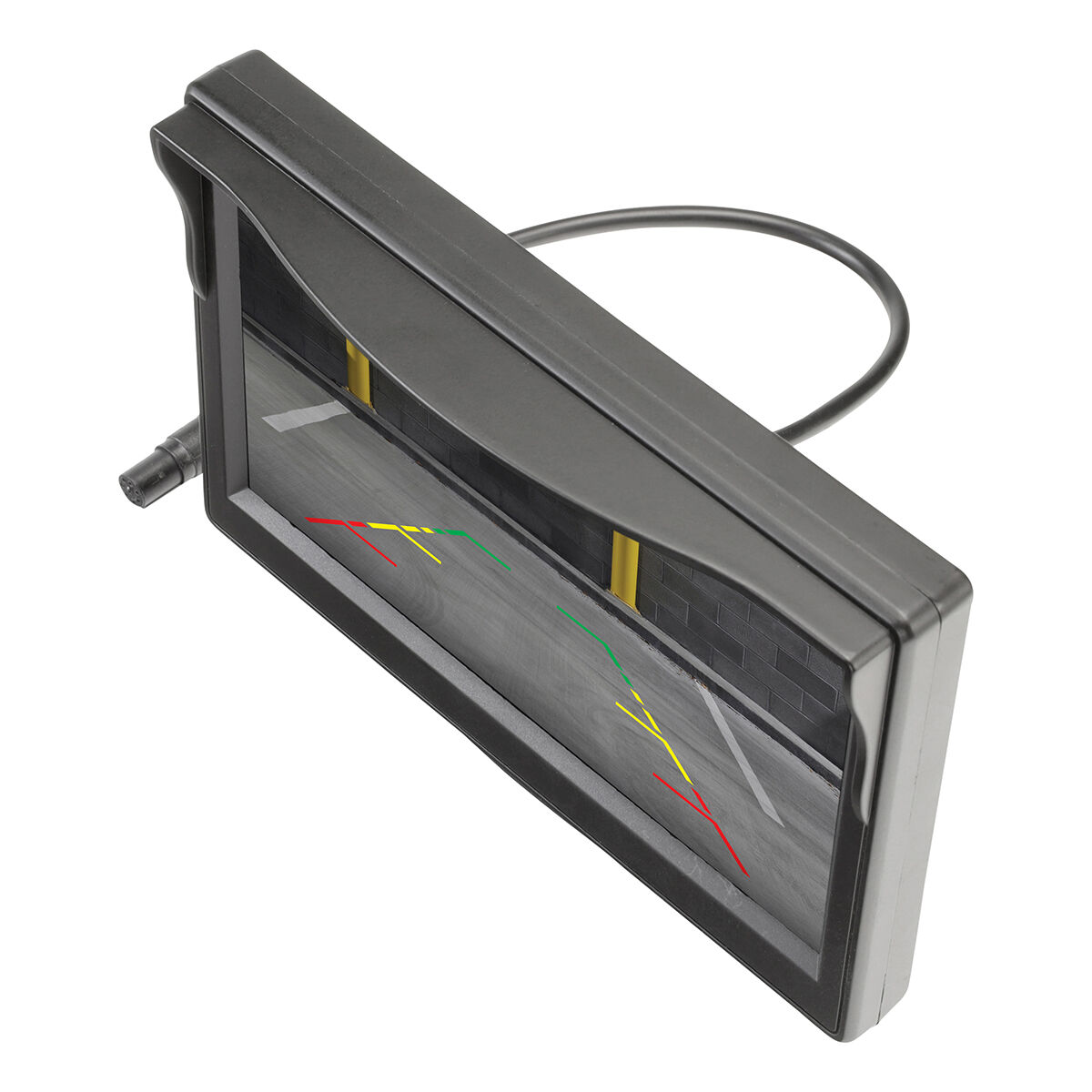

- 5" LCD Display provides clear vision from the reverse camera
- Includes adhesive and suction mounts for positioning the display on the dash or windscreen

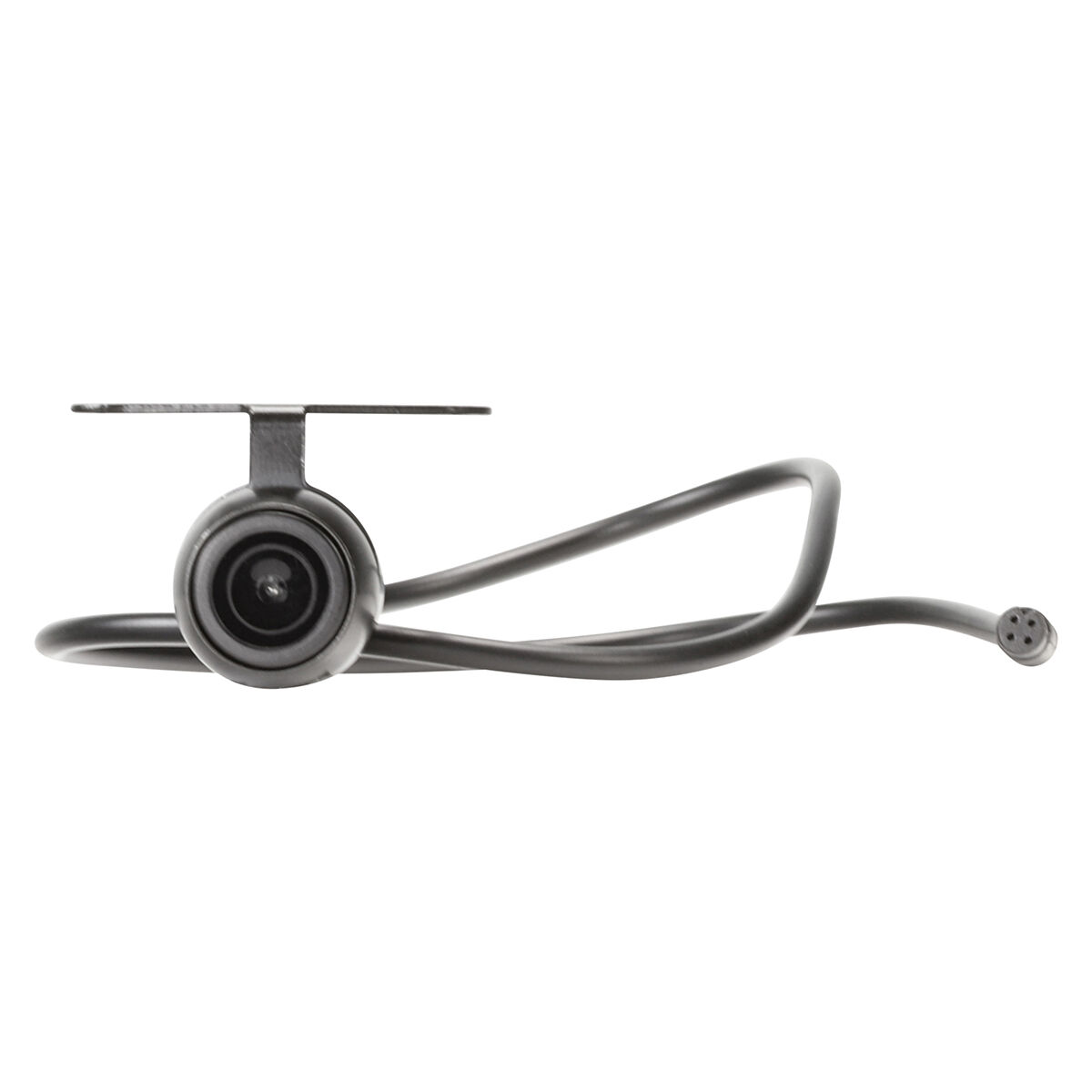

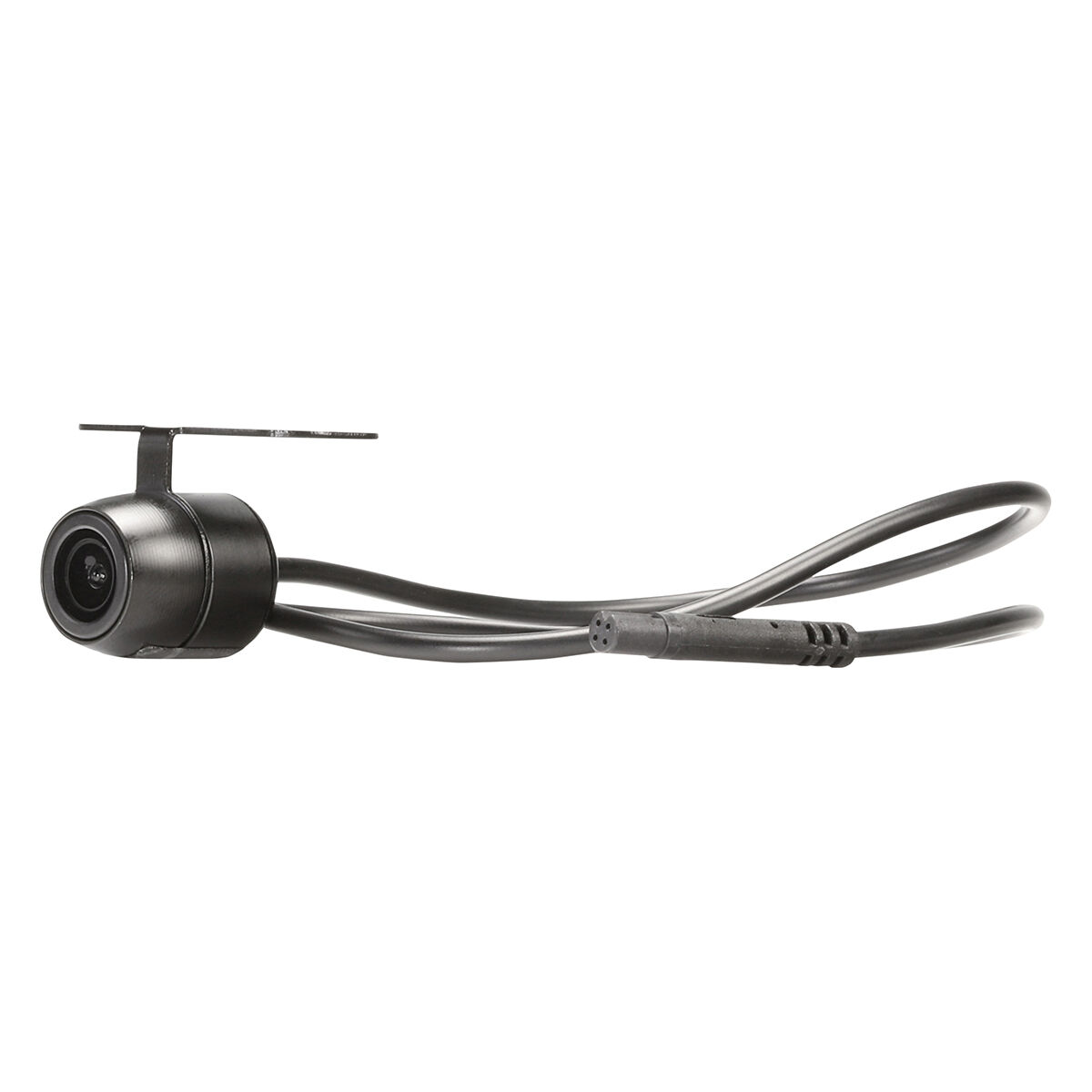

- Surface mount camera can mount in various locations at the rear of the vehicle
- 150° Super wide lens angle minimises blind spots
- Parking guidelines, reverse the vehicle with ease even in tight parking spots
- IP67 Rated camera will withstand the harsh conditions on the exterior of the vehicle
- Reversing mode, automatically activates the reverse camera when reverse gear is engaged
- Adjustable display settings, set brightness, contrast and saturation to suit the operating environment
- Suitable for installing in 12V DC vehicles including cars, utes, 4WDs & trucks
- Wired system with 5.5m video cable included, eliminates interference between the monitor and camera for clear vision
Tech Spec
| Monitor Size | 5.0" |
|---|---|
| Mounting Type | Adjustable Adhesive Mount & Suction Mount |
| Resolution / Brightness | 480(H) x 272(V) |
| Input Voltage | 12V |
| Video Inputs | 2 |
| Display Configuration | Single |
| Image Flip | No |
| Brightness Adjustment | Yes |
| Contrast Adjustment | Yes |
| Saturation Adjustment | Yes |
| Reverse (Mirror) Image | No |
| PAL or NTSC | PAL/NTSC |
| Connection Type | RCA |
| Dimensions | 90mm(H) x 125mm(W) x 44mm(D) | Mount Type | Butterfly Surface |
| Camera Type | Reverse |
| Camera Angle | 150° |
| Image Sensor | CMOS |
| Parking Gridlines | Yes |
| PAL or NTSC | NTSC |
| IP Rating | IP67 |
| Input Voltage | 12V |
| Minimum Illumination | 0.2 Lux |
| Number of LEDs | N/A |
| LED Type | N/A |
| Plug Type (Camera End) | 4 Pin Micro DIN Plug |
| Plug Type (Monitor End) | RCA |
| Video Cable Length | 5.5m |
| Reverse Trigger on Video Cable | Yes |
| Dimensions (Camera Only) | 18mm(H) x 38mm(W) x 30mm(L) |
| Warranty | 12 Months |
