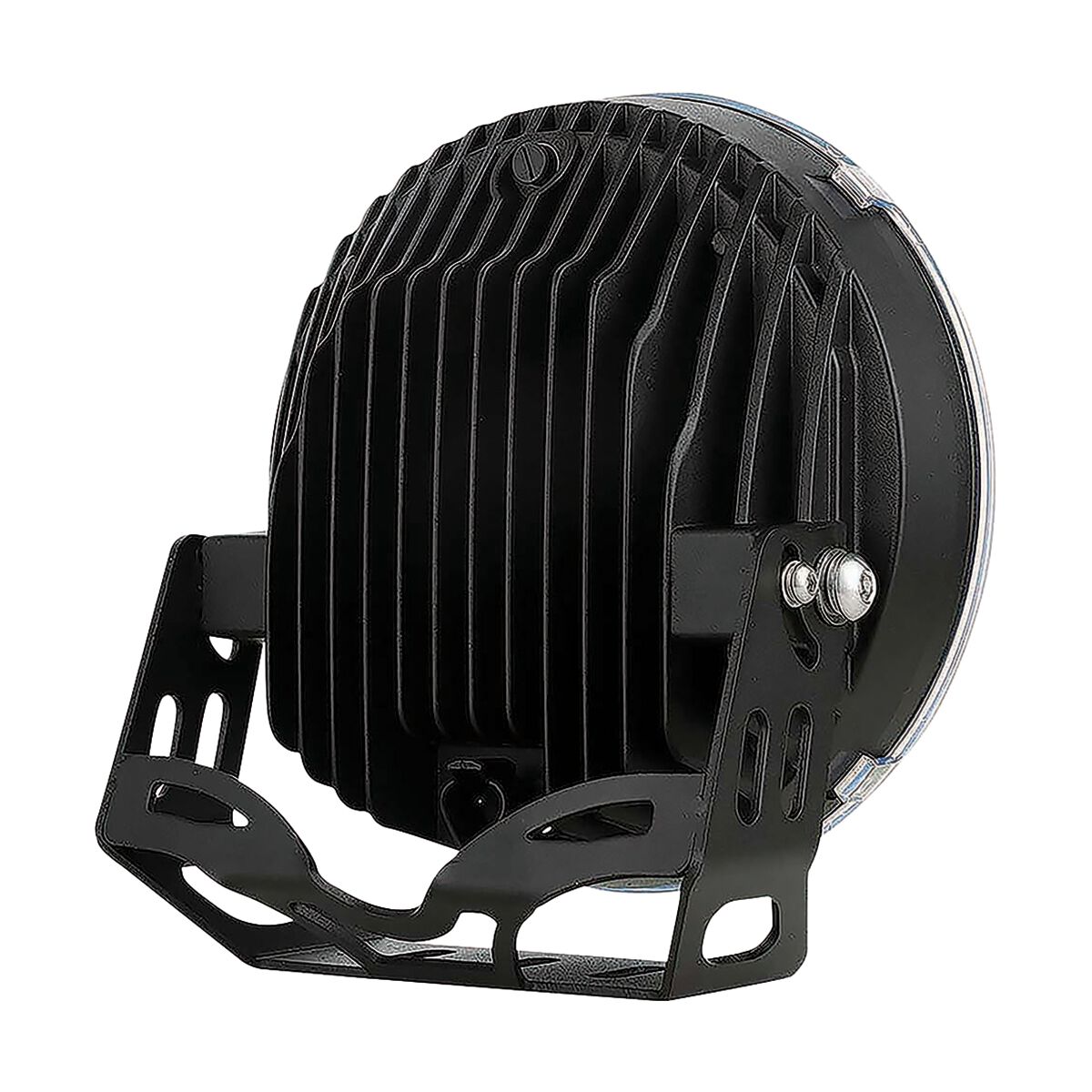

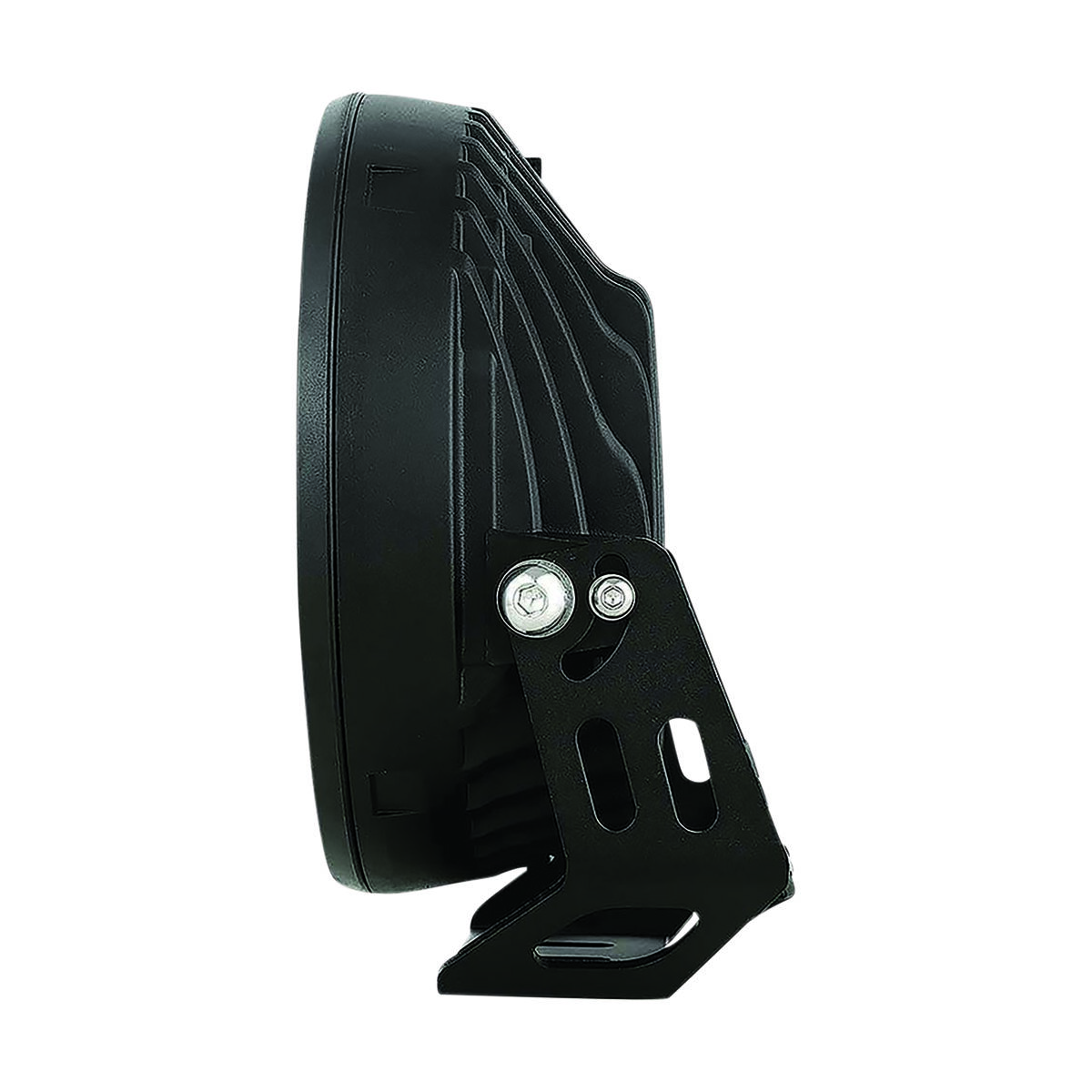

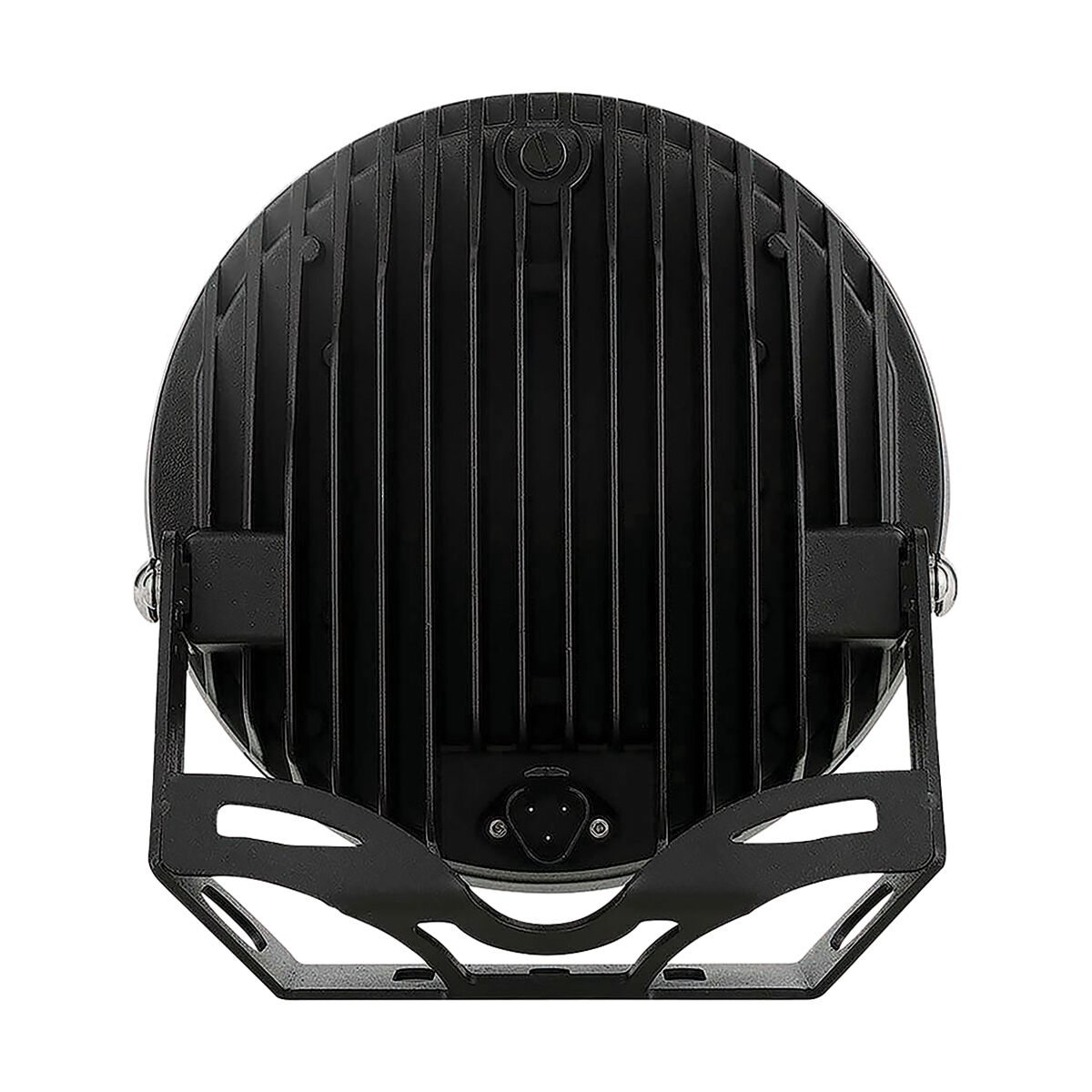

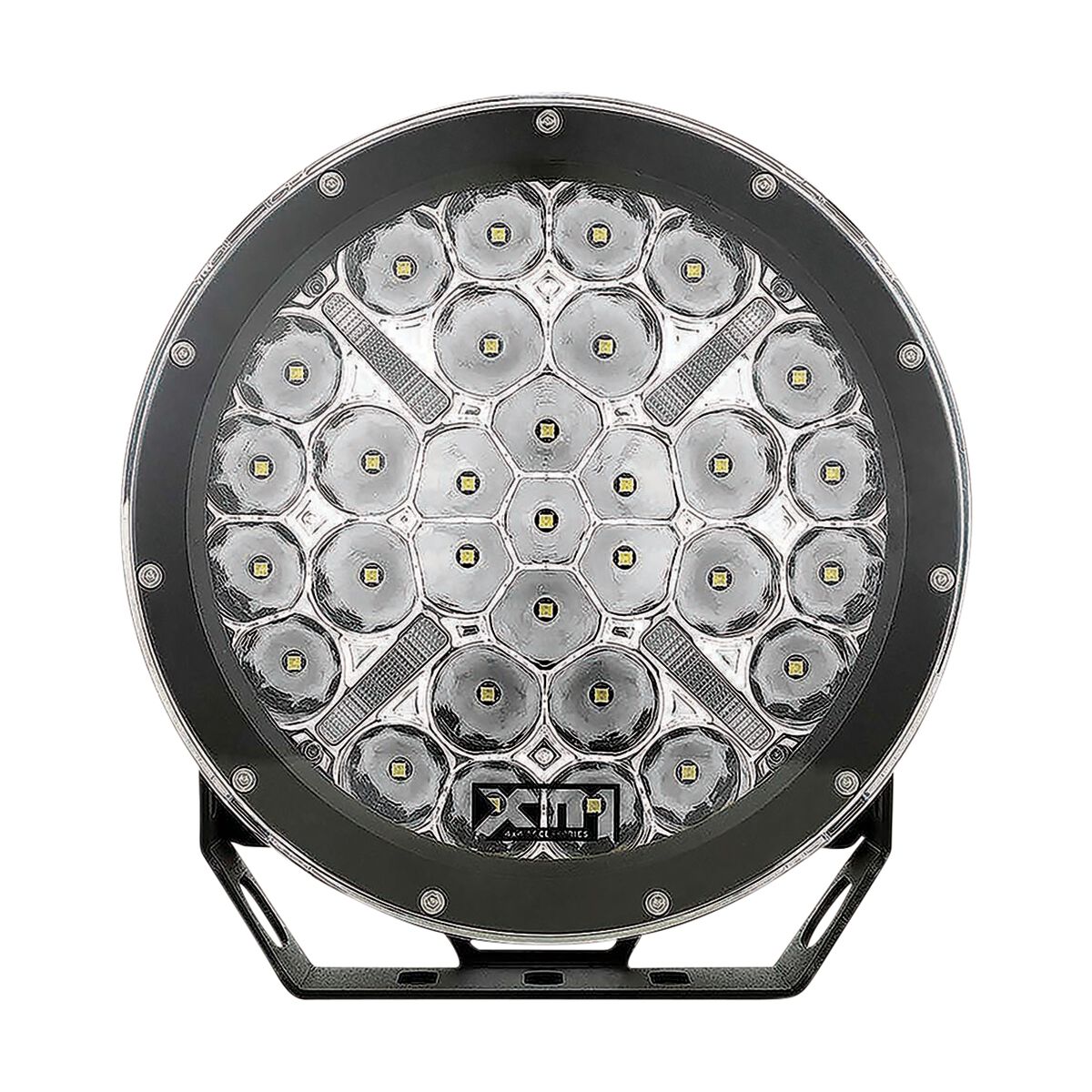

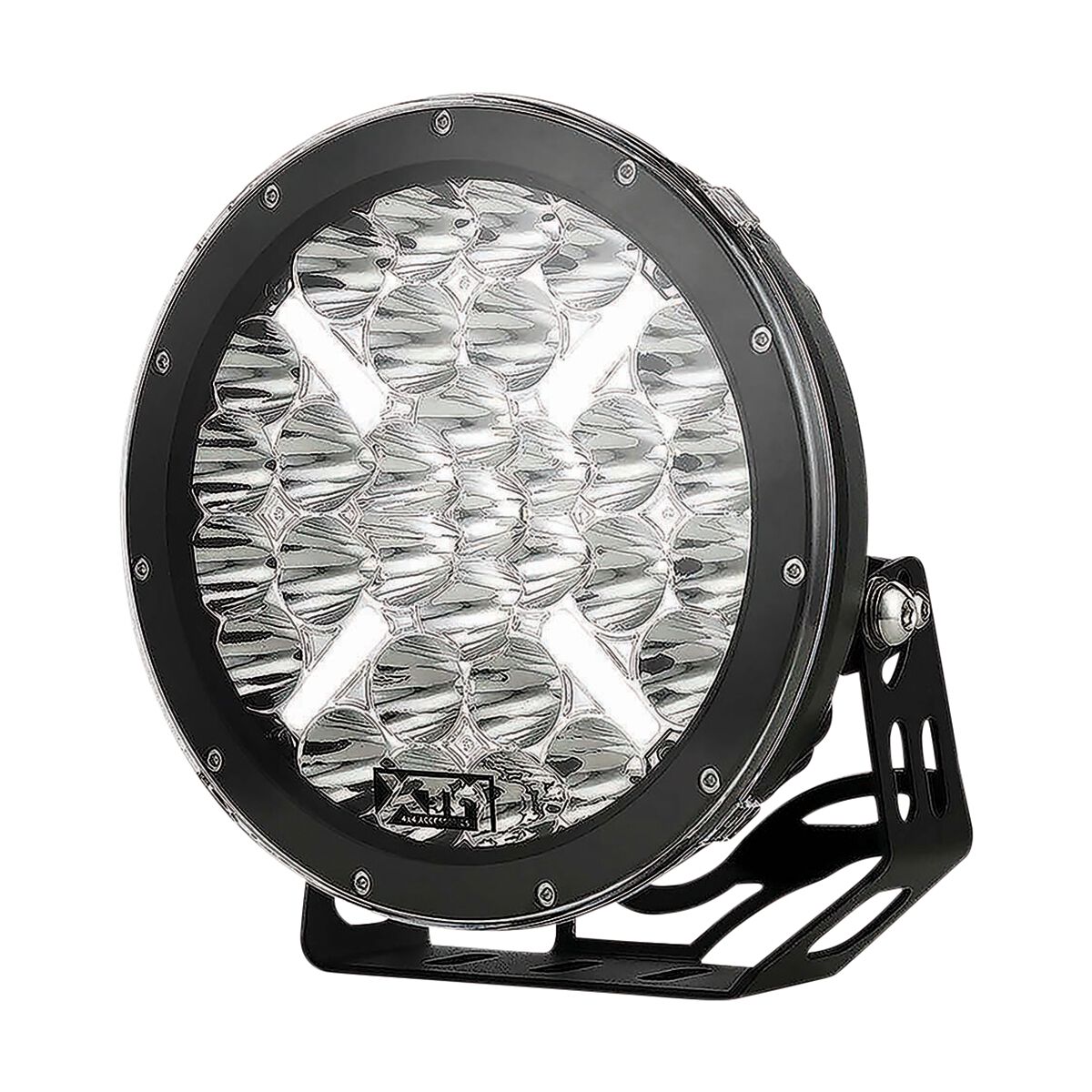

The XTM Phaethon 224 Driving Lights with Daytime Running Lights deliver outstanding performance and modern styling for off-road and touring vehicles. Measuring 224mm in diameter with the cover, each light features 31 x 5W OSRAM LEDs with a focused spot beam, producing a crisp 6,000K colour temperature. A pair of lights generates up to 22,000 lumens, with each light producing 11,000 lumens and achieving 1 LUX at 1,249 metres, providing exceptional long-range visibility in all driving conditions.
These driving lights are equipped with distinctive ‘X’ shaped daytime running lights, each with 4 x 1.5W LEDs, enhancing vehicle visibility during the day while adding a modern, stylish look. Built with a die-cast aluminium alloy housing and polycarbonate lens cover, the lights are IP68 rated for water and dust resistance, and engineered to withstand shock and vibration, ensuring durability in the harshest environments. Installation is simple, with a wiring harness included for convenience.
Combining high output, rugged construction and advanced features, the XTM Phaethon 224 Driving Lights with Daytime Running Lights are ideal for 4WD drivers and adventurers seeking reliable, long-range illumination with enhanced daytime visibility. Backed by a 12-month warranty, they provide peace of mind alongside exceptional performance on every journey.
Features
- Produces up to 22,000 lumens per pair - 11,000 lumens per light
- 1 LUX ar 1,249m/pair
- 224mm diameter (with cover)
- 31 x 5W OSRAM LEDs with spot beam
- ‘X’ shaped daytime running lights with 4 x 1.5W LEDs
- Colour temperature 6,000K
- IP68 water and dust proof, shock and vibration resistant
- Die-cast aluminium alloy housing with polycarbonate lens cover

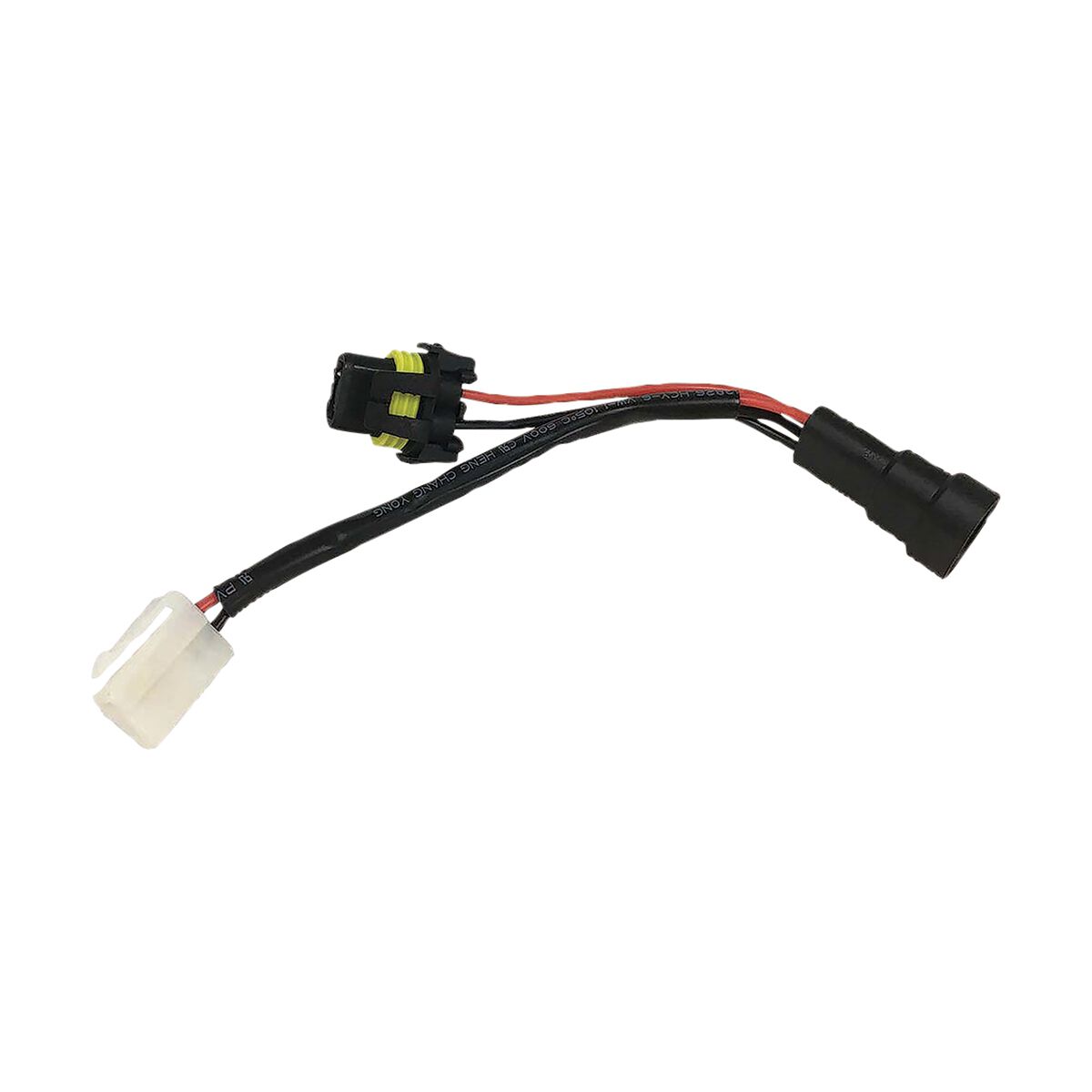

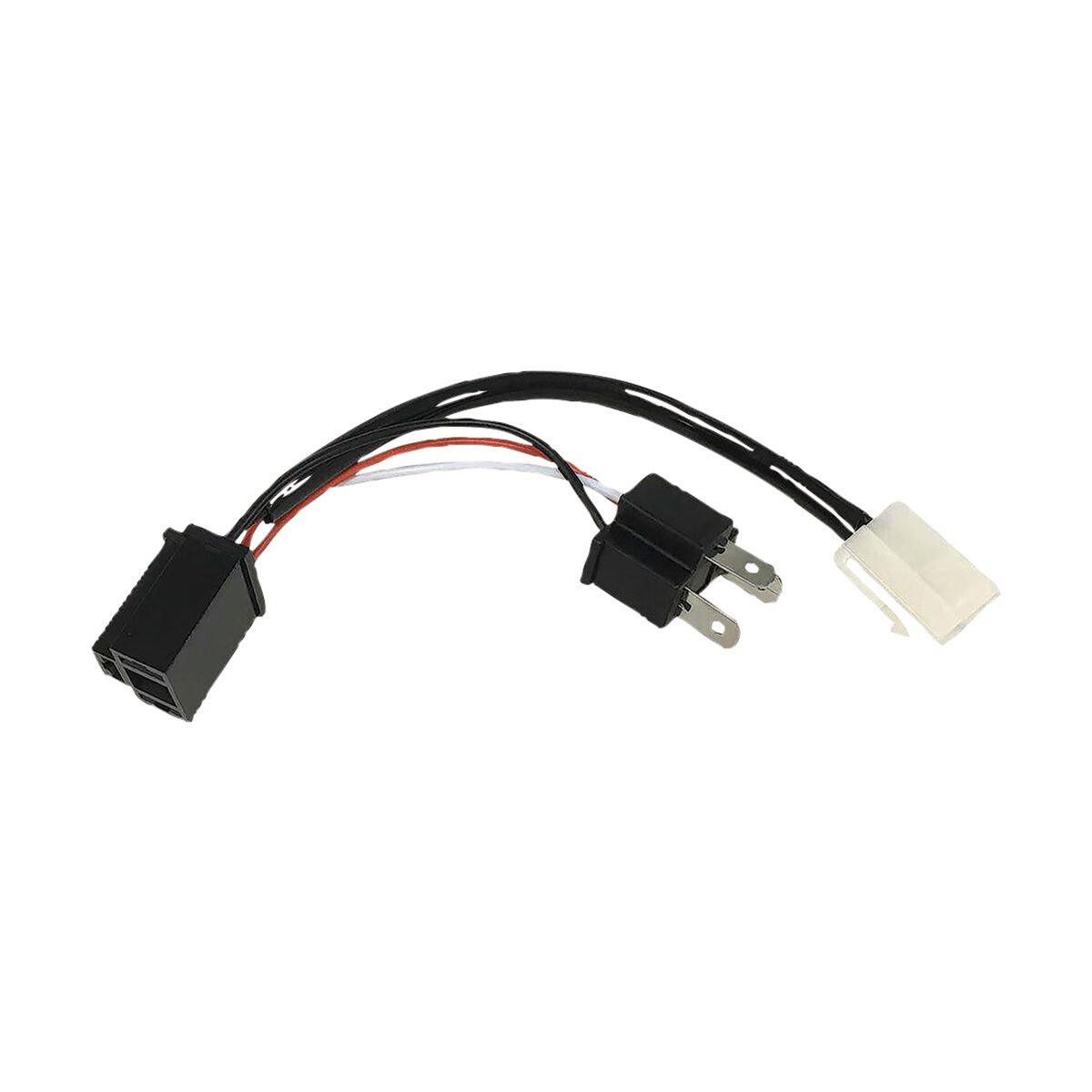

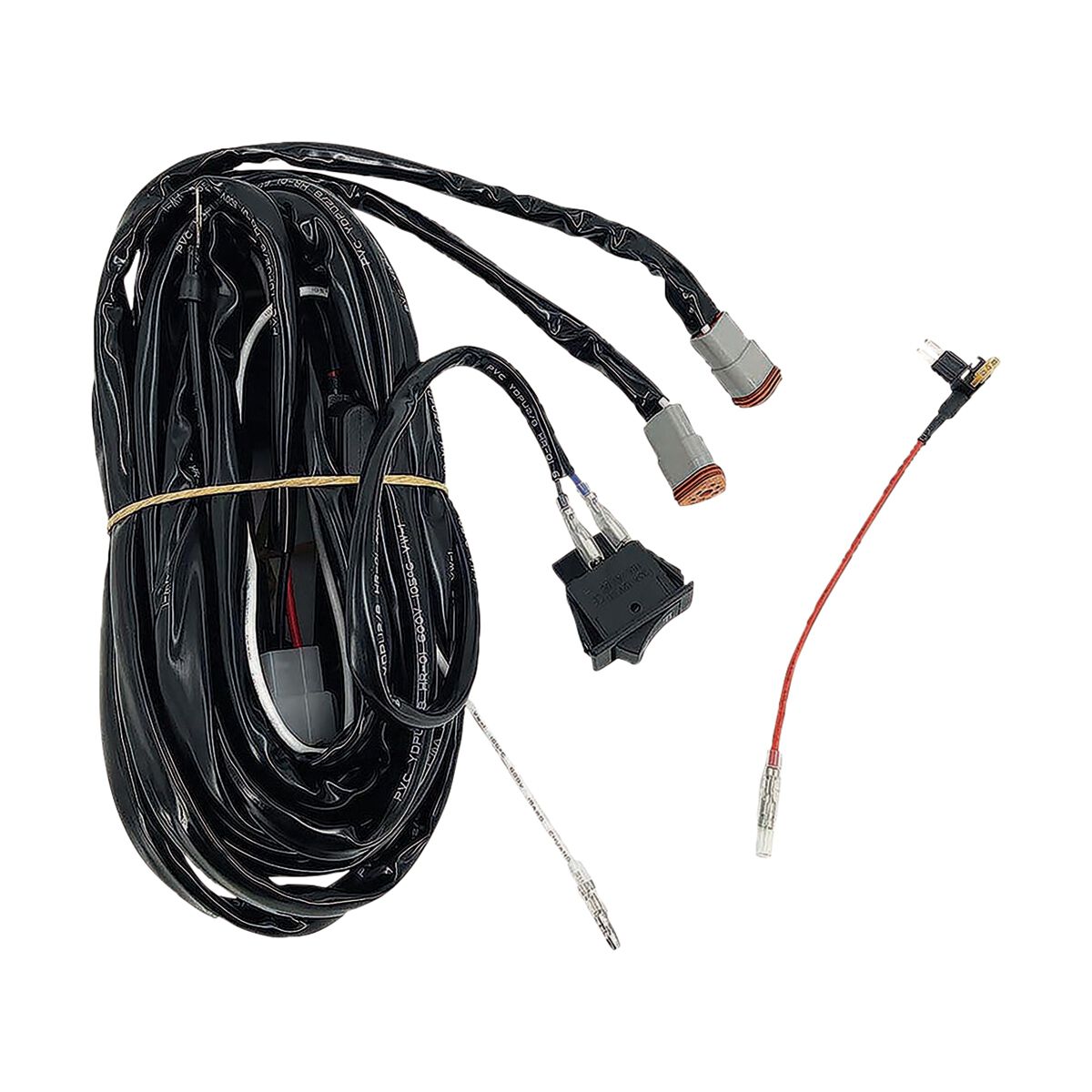

- Wiring harness included
- 12 month warranty
Tech Spec
| DIAMETER | 224mm with cover |
|---|---|
| RATED POWER | 155W (main light) + 6W (DRL) per light |
| OPERATING LUMENS OUTPUT | 22,000 lumens per pair / 11,000 per light |
| DISTANCE TO 1 LUX | 1,249m per pair |
| INPUT VOLTAGE | 12V-24V |
| CURRENT DRAW (MAIN LIGHT) | 11.25A @ 12V / 5.65A @ 24V per light |
| CURRENT DRAW (DRL) | 0.2A @ 12V / 0.08A @ 24V per light |
| COLOUR TEMPERATURE | 6,000K |
| IP RATING | IP68 |
| HOUSING MATERIAL | Die-cast alunimium alloy |
| LENS MATERIAL | Polycarbonate |
| DIMENSIONS WITH BRACKETS | 224(L) x 128(W) x 243(H)mm |
| WEIGHT (PER LIGHT) | 3.05kg |
| WARRANTY | 12 months |
