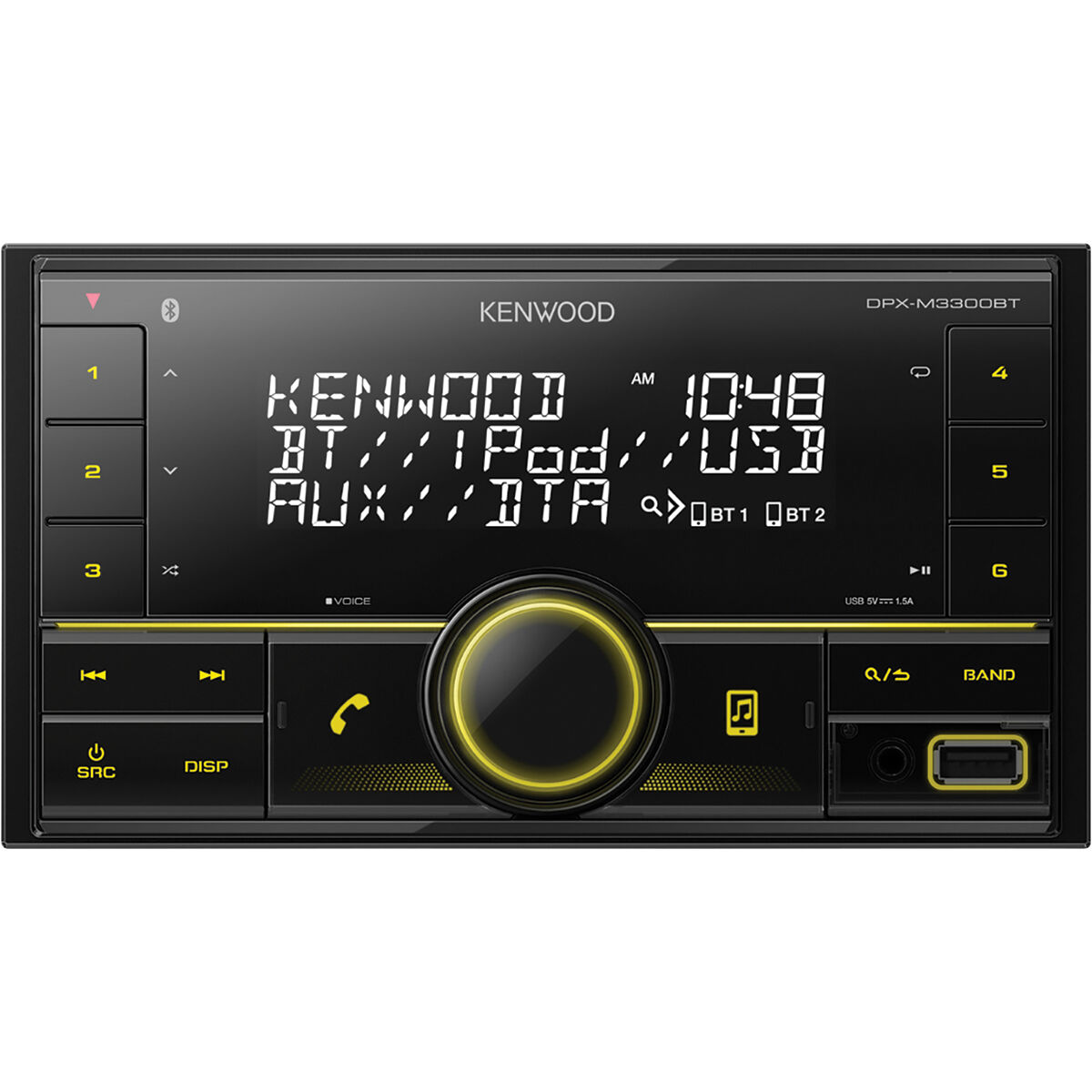

The Kenwood DPX-M3300BT Double DIN Head Unit is designed for music and technology enthusiasts who seek both performance and convenience. Featuring an easy-to-read LCD screen, it displays artist and song information clearly, making your driving experience more enjoyable. This Kenwood head unit's variable colour illumination lets you personalise the display to match your preferences, adding a custom touch to your car's interior.
Integrated Bluetooth® technology allows for hands-free calling and wireless music streaming, while two active Bluetooth connections let you pair two phones simultaneously. With the push of a button, you can easily switch between calls or music from either phone, keeping you connected without distractions.
The Kenwood DPX-M3300BT is equipped with 2 x RCA pre-outs, providing the flexibility to enhance your car audio system with subwoofers or amplifiers for a richer sound experience. It also includes front-facing USB and AUX ports for easy connectivity with your devices, and a supplied external microphone ensures crystal-clear communication during calls.
With a powerful 50W x 4 sound output, this Kenwood head unit is perfect for most standard speaker systems, delivering high-quality audio performance. It’s also compatible with USB High-Speed & Apple iAP2 protocol, making it an ideal choice for those who want to integrate Apple devices seamlessly. Upgrade your car's audio system with the Kenwood DPX-M3300BT Double DIN Head Unit and enjoy premium sound and technology on every drive.
Features
- Multi-colour Illumination / Direct Bluetooth Control
- Compatible with USB High Speed & Apple iAP2 protocol
- "Music Mix" - High Quality Music Streaming x 5 devices
- 2-Phone Hands Free Calling Ready
- Work with Kenwood Remote App (via iOS:USB/BT & Android:BT)
- Front USB & AUX with Protection Cover
- WAV / FLAC / WMA / AAC / .m4a / MP3 (via USB)
- Max. 1.5A Charging for Smartphones via USB (Selected Android)
- 13-Band EQ / Digital Time Alignment / Voltage 2.5V / 2 Preouts
Tech Spec
| Model | DPX-M3300BT |
|---|---|
| FM Frequency Range (MHz) | 87.5 MHz – 108.0 MHz (50 kHz steps) |
| Usable Sensitivity (FM) | 8.2 dBf (S/N: 30 dB) (0.71 µV / 75 Ω) |
| Quieting Sensitivity (FM) | 17.2 dBf (DIN S/N: 46 dB) (2.0 µV / 75 Ω) |
| Frequency Response (FM) | 30 Hz – 15 kHz (±3.0 dB) |
| S/N Ratio (FM) | 64.0 dB (Mono) |
| Stereo Separation | 40 dB (1 kHz) |
| MW / AM Frequency Range |
Band 1 (MW): 531 kHz – 1602 kHz (9 kHz) Band 2 (SW1): 2940 kHz – 7735 kHz (5 kHz) Band 3 (SW2): 9500 kHz – 10135 kHz & 11580 kHz – 18135 kHz (5 kHz) |
| Usable Sensitivity (MW / SW) | 29.0 dBµ (28.2 µV) MW / 30 dBµ (32 µV) SW |
| Channel Space Selection | MW: 9 kHz / SW: 5 kHz |
| Preout Level / Load (Unbalanced) | 2500 mV / 10 kΩ |
| Preout Impedance | ≤ 600 Ω |
| Speaker Impedance | 4 – 8 Ω |
| USB Interface | USB 1.1 / 2.0 High Speed |
| USB File System | FAT12 / FAT16 / FAT32 |
| USB Maximum Supply Current | DC 5V (DC logo) 1.5A |
| USB Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| USB S/N Ratio | 98 dB (1 kHz) |
| USB Dynamic Range | 93 dB |
| USB Channel Separation | 91 dB |
| Audio Decoding Support | MP3, WMA, AAC-LC (.aac/.m4a), WAV (Linear PCM), FLAC (up to 96 kHz / 24 bit) |
| AUX Input Frequency Response | 20 Hz – 20 kHz (±3 dB) |
| AUX Maximum Input Voltage | 1000 mV |
| AUX Input Impedance | 30 kΩ |
| Amplifier Power (Max) | 50 W x 4 |
| Full Bandwidth Power (<=1% THD) | 22 W x 4 |
| Tone / EQ Bands |
Band1 62.5 Hz ±9 dB Band2 100 Hz ±9 dB Band3 160 Hz ±9 dB Band4 250 Hz ±9 dB Band5 400 Hz ±9 dB Band6 630 Hz ±9 dB Band7 1 kHz ±9 dB Band8 1.6 kHz ±9 dB Band9 2.5 kHz ±9 dB Band10 4 kHz ±9 dB Band11 6.3 kHz ±9 dB Band12 10 kHz ±9 dB Band13 16 kHz ±9 dB |
| Bluetooth Version | Bluetooth 4.2 |
| Bluetooth Frequency Range | 2.402 – 2.480 GHz |
| RF Output Power | +4 dBm (Max), Power Class 2 |
| Maximum Communication Range | Approx. 10 m (line of sight) |
| Supported Bluetooth Profiles | HFP 1.7.1, SPP, PBAP, A2DP, AVRCP 1.6.1 |
| Operating Voltage | 12V DC (car battery) |
| Installation Size (W x H x D) | 178 x 100 x 100 mm |
| Net Weight | 0.8 kg |
| Trim Plate | Included |
| Warranty | 1 Year |
